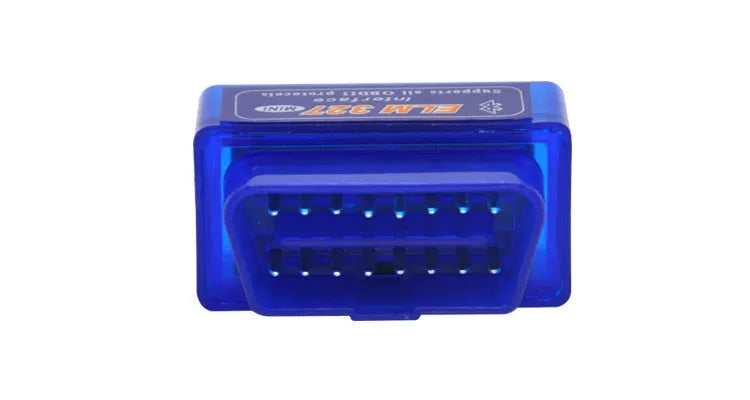

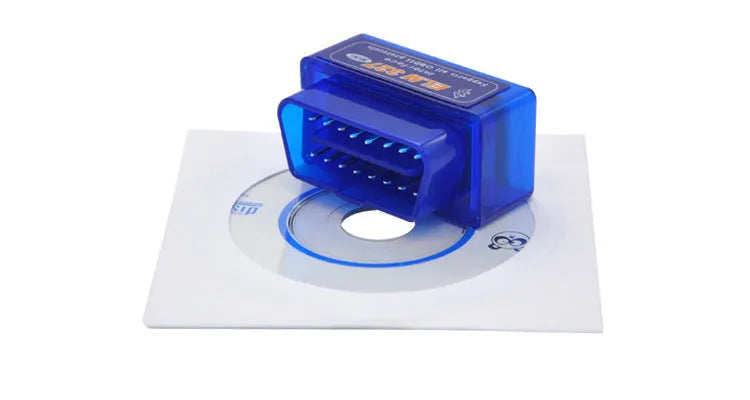

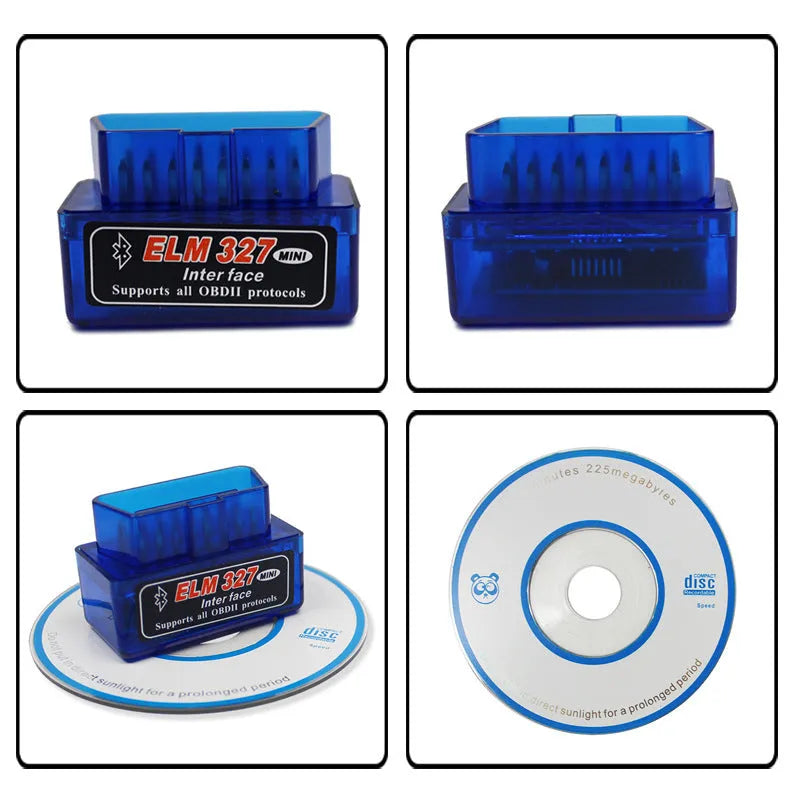

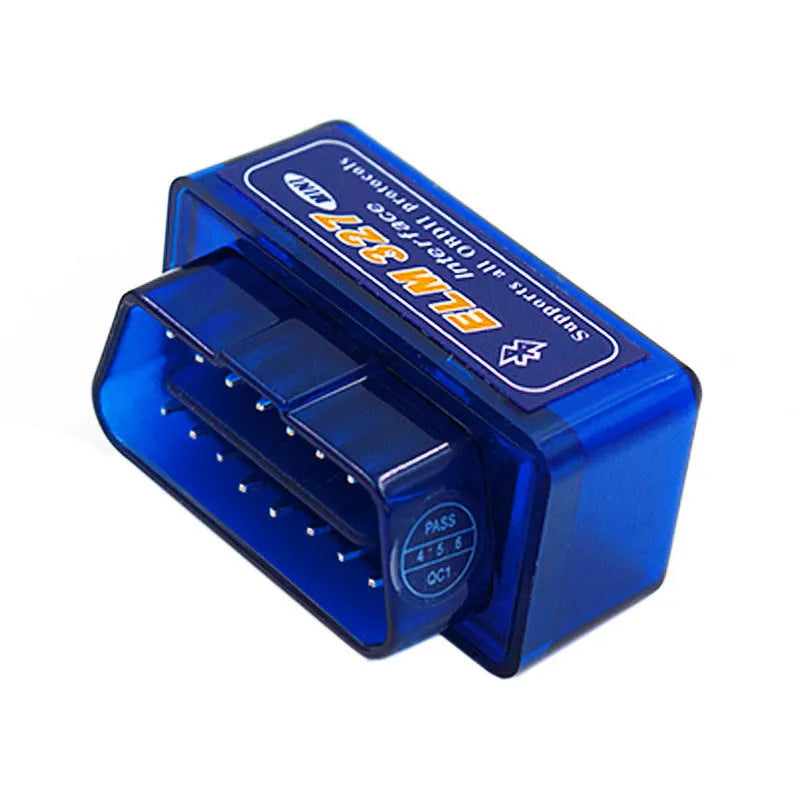

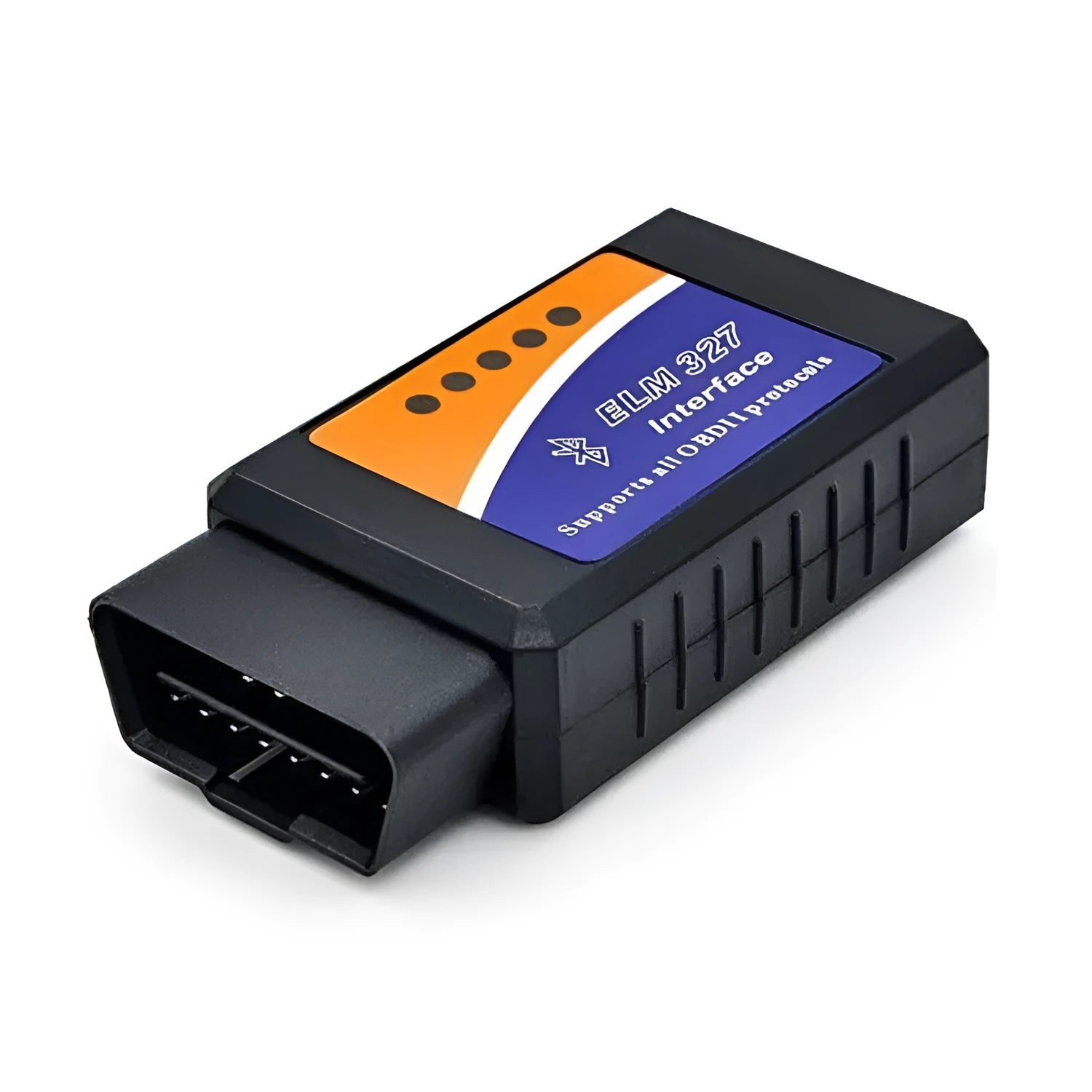

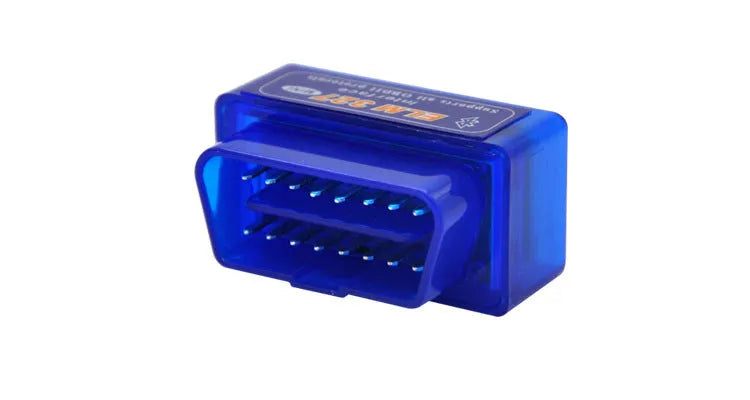

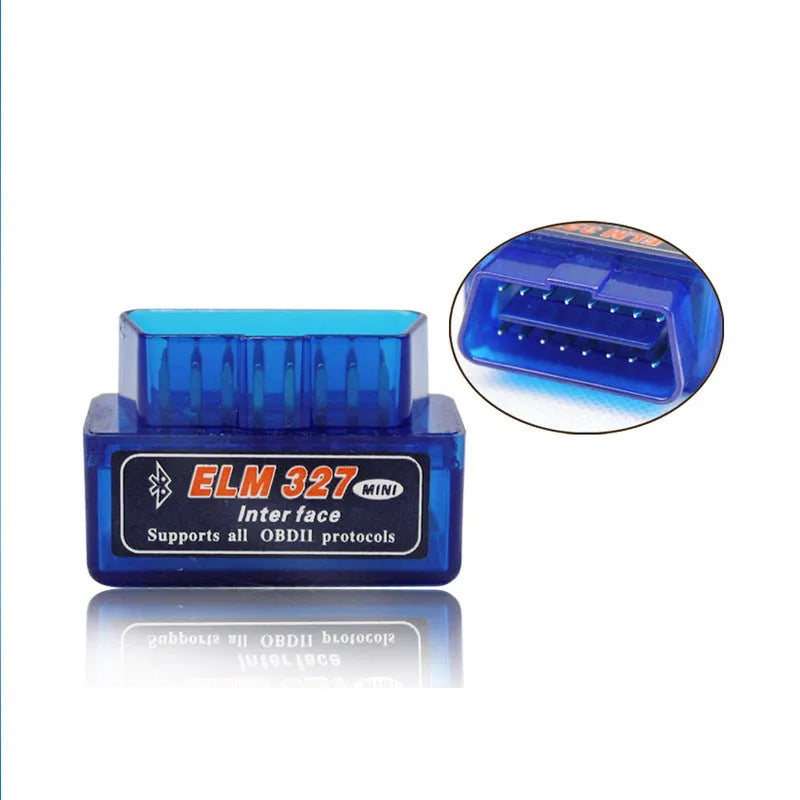

ELM327 Bluetooth OBD2 Scanner for Android and Windows Car Engine Diagnostics

This Bluetooth OBD2 scanner provides a direct link to your vehicle's onboard computer, allowing you to read and clear diagnostic trouble codes that trigger the 'check engine' light. It displays real-time sensor data, giving you insight into engine performance metrics like RPM, coolant temperature, and fuel pressure. Compatible with a wide range of devices and operating systems including Android phones, Windows laptops, and iPhones, it turns your existing gadget into a capable diagnostic tool. With its compact 45mm x 25mm x 65mm build, it is designed to stay plugged into your car's OBD2 port conveniently.

Features and Construction

The scanner's primary function is to access your vehicle's diagnostic system, providing detailed information on engine health and performance. It translates raw data into understandable readings through compatible software applications.

Material and Build

The device is constructed from electronic components housed in a durable plastic casing suited for the automotive environment. It is built to operate within a vehicle's 9v-16v power range and draws a 35mA working current, with a lower 25mA standby current to minimise drain. Its specified operating temperature range is from -40℃ to 85℃, allowing for use in extreme climates, and it functions in conditions with less than 60% humidity.

Size and Practical Fit

Measuring 45mm in length, 25mm in width, and 65mm in height, the scanner has a compact form factor. This small size allows it to connect discreetly to the OBD2 port, usually found under the dashboard, without being obtrusive. It is designed to remain plugged in for continuous access if desired, thanks to its low power consumption profile.

Uses and Placement

This diagnostic tool serves both professional mechanics and everyday drivers who want to understand their vehicle's condition without needing expensive garage equipment.

Event or Professional Use

For professional or enthusiast use, the scanner can read manufacturer-specific codes in addition to generic ones, with a database containing definitions for over 3000 generic fault codes. It displays a comprehensive set of live sensor data, including engine speed (RPM), calculated load value, coolant and intake air temperature, manifold pressure, throttle position, and oxygen sensor voltages. This data is crucial for performing detailed diagnostics, tuning, or verifying repairs.

Everyday Home Use

For the average car owner, the most immediate use is reading the meaning behind a triggered 'check engine' light and clearing the code after addressing the issue. Monitoring basic parameters like vehicle speed, fuel system status, and short/long-term fuel trim can help identify developing problems early. The ability to use familiar apps like Torque on an Android phone makes the process straightforward and eliminates the need for dedicated, single-purpose hardware.

Benefits and Buying Value

The value of this scanner lies in its ability to provide professional-grade diagnostic access using devices you already own, coupled with its broad compatibility and straightforward operation.

Reuse and Low Maintenance

The device itself requires no maintenance and can be used across multiple vehicles, as long as they are equipped with a standard OBD2 port. The software applications are typically low-cost or free, and the single included CD provides a starting point for Windows users. Its durability is supported by its rated operating temperature and humidity ranges, suggesting a build quality suitable for the automotive environment.

Why Choose This Product

This scanner is a practical choice because it consolidates multiple functions—code reading, clearing, and live data display—into one compact, Bluetooth-enabled device. Its wide compatibility with operating systems (Android, Windows, iOS, Symbian) and popular third-party software like Torque, DashCommand, and ScanMaster-ELM means you are not locked into a proprietary ecosystem. The availability in different versions (ELM32, ELM327, ELM327 mini v2.1) allows for selection based on specific vehicle or software requirements.
