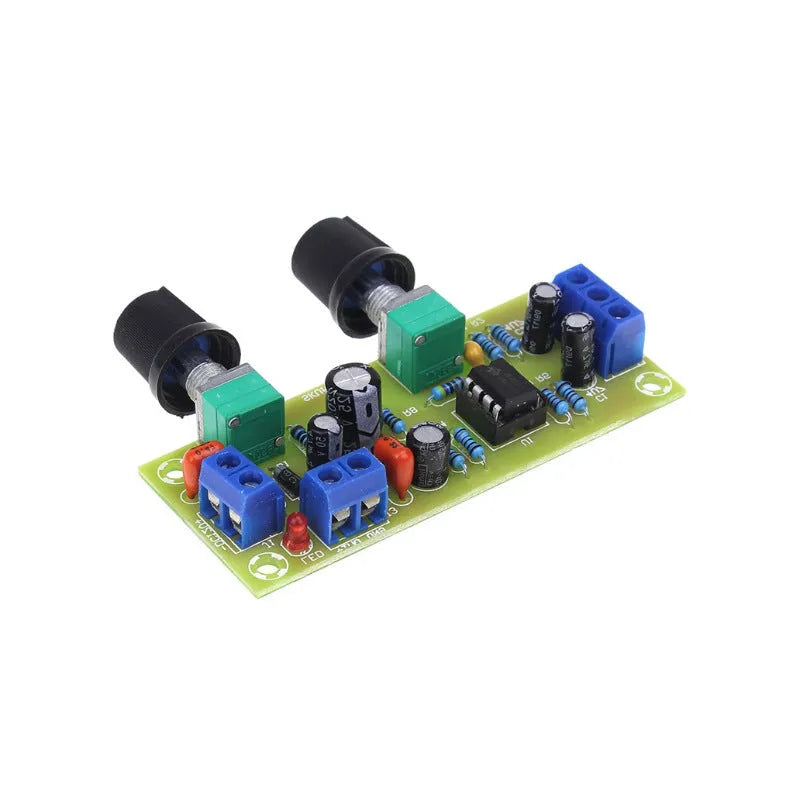

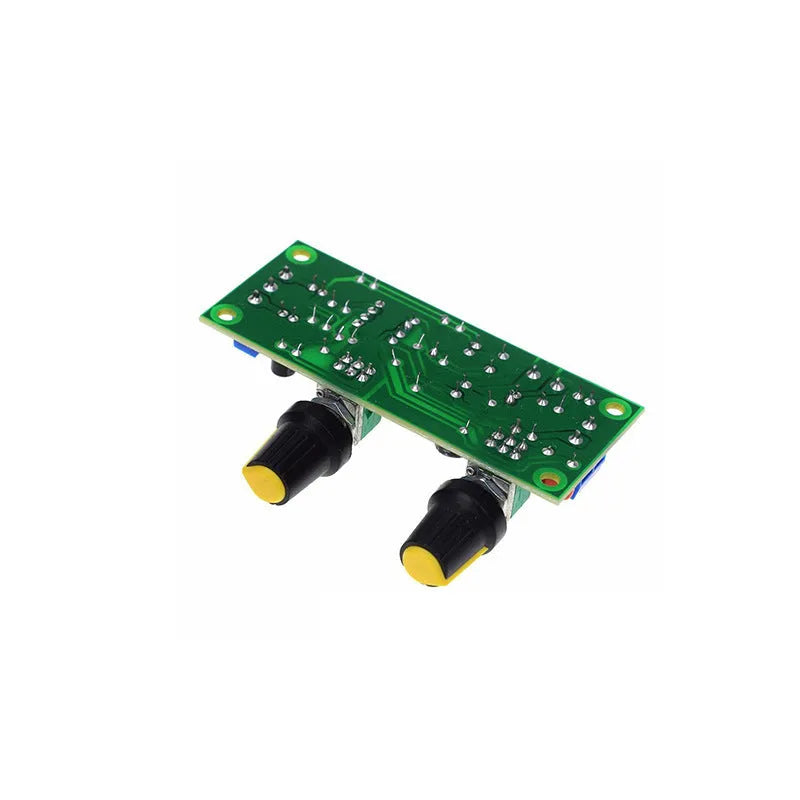

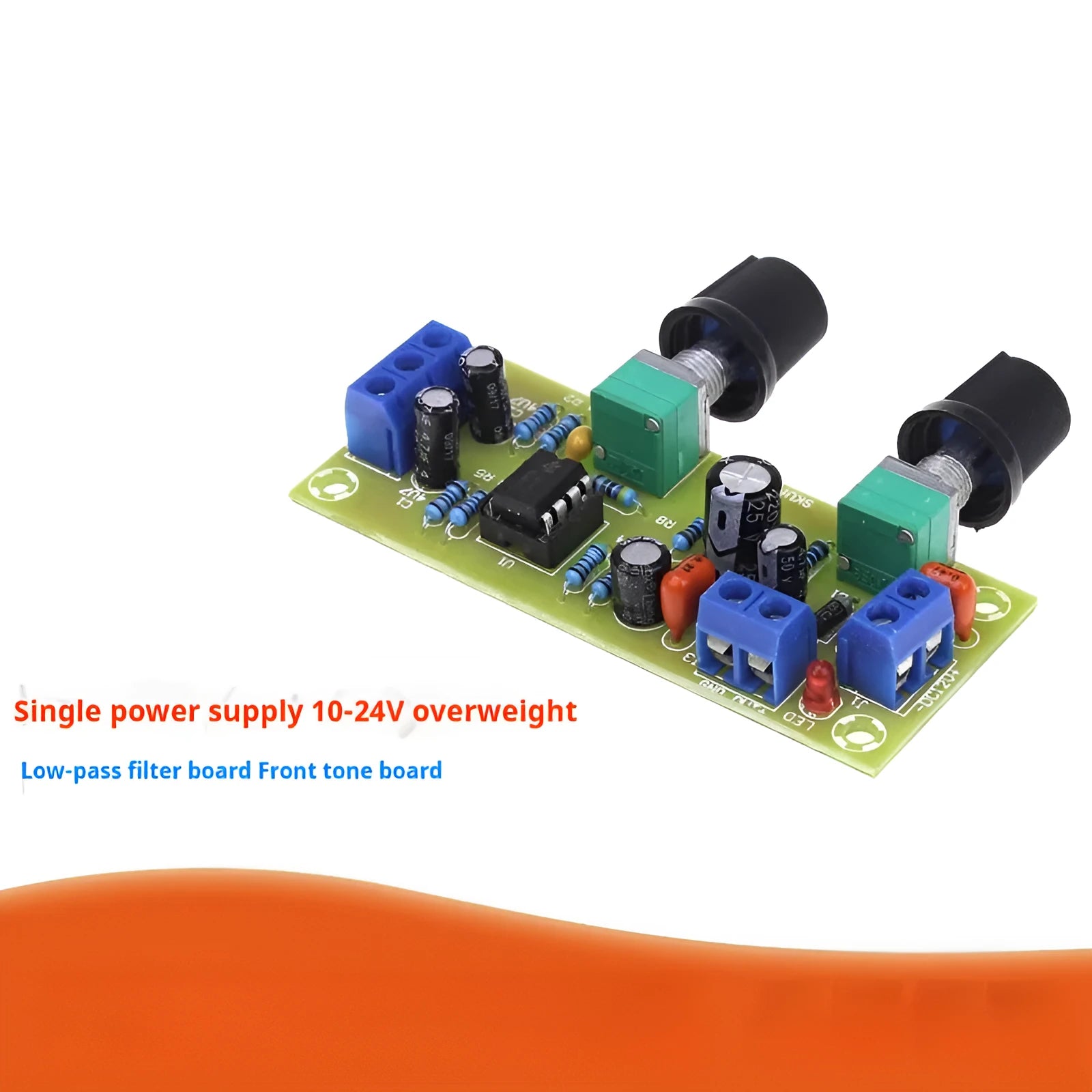

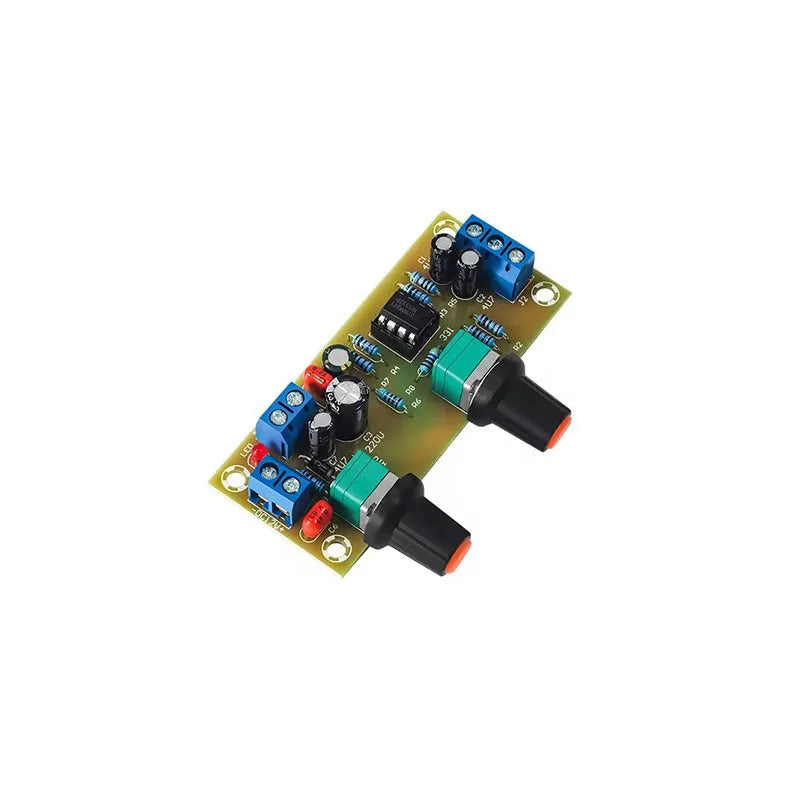

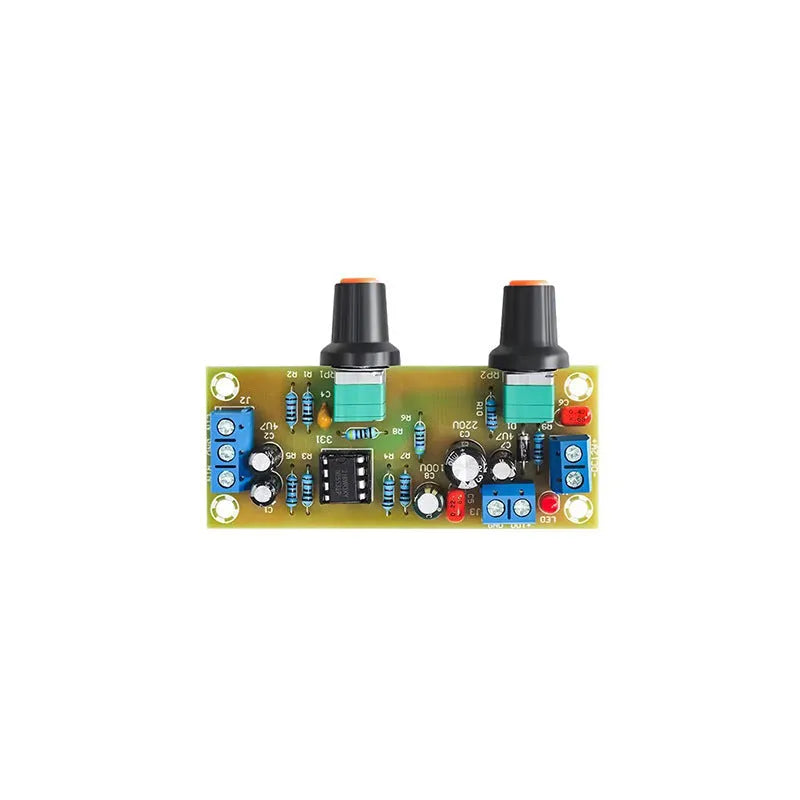

Super Dynamic Bass Boost Front Stage Board with 10-24V Single Power Supply for Audio Enhancement

This specialised audio processing board delivers super dynamic bass boost functionality for audio systems requiring enhanced low-frequency performance. Operating on a single DC power supply from 10 to 24 volts, it provides versatile integration options for various audio setups. The board accepts both mono and dual channel audio inputs while outputting a mono signal with bass enhancement across the 22Hz to 300Hz frequency range. With its compact 78x32mm PCB dimensions and lightweight 30g construction, this front stage board fits easily into space-constrained installations while offering substantial bass improvement capabilities for car audio, home theatre, or professional sound reinforcement applications.

Features and Construction

The front stage board combines practical audio enhancement features with robust construction elements designed for reliable operation. Its design focuses on delivering measurable bass boost while maintaining compatibility with standard audio systems and power supplies. The board's specifications prioritise both performance characteristics and physical durability to ensure long-term functionality in various installation environments.

Material and Build

The PCB utilises super hardness FR-4 fibreboard as its foundation material, providing both structural stability and proper electrical insulation properties. This material choice ensures the board maintains its shape and integrity during installation and operation while offering appropriate dielectric characteristics for audio signal processing. The 1.6mm thickness contributes to the board's rigidity, preventing flexing that could potentially damage soldered components or circuit traces. All electronic components are factory-installed on the finished board, with the 32.5mm potentiometer shaft centre spacing designed to accommodate standard control knobs for user adjustment of bass boost parameters.

Size and Practical Fit

With compact dimensions of 78mm by 32mm, this front stage board occupies minimal space within audio system enclosures or equipment racks. The lightweight 30g net weight ensures it adds negligible mass to existing installations while the 70x24mm plate fixing hole centre spacing with 3.2mm diameter holes provides multiple mounting options. This mounting system allows secure attachment to various surfaces using standard hardware, preventing vibration-induced issues during operation. The board's physical proportions make it suitable for integration into both commercial audio equipment and custom DIY audio projects where space optimisation is important.

Uses and Placement

This bass boost front stage board serves multiple audio enhancement applications across different environments and system types. Its flexible power requirements and input/output configurations make it adaptable to various audio scenarios where low-frequency reinforcement would improve sound quality. Understanding its potential applications helps users determine whether this component meets their specific audio enhancement needs.

Event or Professional Use

In professional audio contexts, this board can enhance bass response in portable sound systems, small venue reinforcement setups, or mobile DJ equipment where space and power constraints exist. The 10-24V power range accommodates various power supply options commonly available in professional audio environments, including regulated DC power supplies or battery-powered systems. The 22Hz-300Hz frequency range specifically targets the fundamental bass frequencies crucial for music reproduction and speech reinforcement, allowing system operators to tailor low-frequency response to room acoustics or programme material requirements through the included potentiometer adjustment.

Everyday Home Use

For domestic audio applications, this front stage board can improve bass performance in car audio systems, computer speaker setups, or compact home theatre configurations. The single power supply operation simplifies integration with existing 12V automotive electrical systems or household DC power adapters. Home audio enthusiasts can utilise the board's bass boost functionality to compensate for smaller speaker systems' natural bass limitations or to tailor sound characteristics to personal preference. The board's mono output configuration works well with single-subwoofer setups or systems where bass management concentrates low frequencies to specific channels.

Benefits and Buying Value

This front stage board offers practical advantages for users seeking to enhance audio system performance without extensive modification or investment in complete new equipment. Its value proposition centres on measurable performance improvements, installation flexibility, and component quality that supports reliable operation over time. Understanding these benefits helps justify the board's inclusion in audio system upgrade or construction projects.

Reuse and Low Maintenance

The board's standardised mounting specifications and connection requirements facilitate potential reuse in different audio projects or system upgrades over time. The super hardness FR-4 fibreboard construction resists physical damage during handling and installation, supporting multiple installation cycles if required. With no moving parts beyond the potentiometer adjustment, maintenance requirements remain minimal, limited primarily to ensuring clean electrical connections and preventing physical damage to components. The finished board construction eliminates the need for component-level troubleshooting or repair that might be required with kit-based alternatives.

Why Choose This Product

This front stage board stands out for its specific combination of power flexibility, measurable bass enhancement capability, and physical construction quality. The 10-24V single power supply range exceeds typical 12V-only designs, offering compatibility with both automotive and household power systems. The 22Hz-300Hz frequency targeting focuses specifically on the bass range where most enhancement is perceptible and valuable in audio reproduction. The super hardness FR-4 fibreboard provides better durability than standard phenolic boards while the 1.6mm thickness offers improved rigidity compared to thinner alternatives. These concrete specifications translate to practical advantages in installation ease, compatibility range, and long-term reliability for audio enhancement applications.
