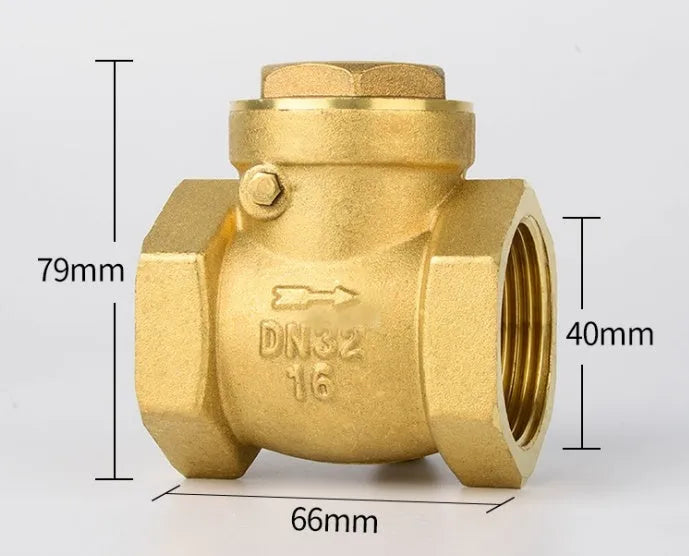

Brass Check Valves for Threaded Piping Systems in Sizes from DN15 to DN100

This product line consists of industrial-grade check valves constructed from brass and designed for threaded pipe connections. Their primary function is to permit fluid flow in one direction while automatically preventing reverse flow (backflow), a critical requirement in many plumbing, heating, and process piping systems. The availability in both horizontal and vertical body styles provides installers with options to fit specific spatial constraints and pipeline layouts. Offered in a full spectrum of common nominal diameters from DN15 (often referred to as 4 points) up to DN100 (4 inches), these valves ensure broad compatibility with standardised pipework. The brass material selection balances durability with cost-effectiveness for a wide range of non-aggressive applications.

Features and Construction

The core design of these valves focuses on reliable operation and straightforward integration into existing systems. The construction details and size options are key factors for engineers and installers specifying components.

Material and Build

The valves are fabricated from brass, an alloy primarily composed of copper and zinc. This material is widely used in valve manufacturing due to its favourable properties: it offers good resistance to corrosion from water and many common chemicals, exhibits excellent machinability for precise threading, and provides sufficient strength for general industrial pressure requirements. The threaded connection ends are precision-cut to mate securely with corresponding female threads on pipes or fittings, forming a robust mechanical seal that is central to the valve's installation method.

Size and Practical Fit

Compatibility is ensured through adherence to standard nominal pipe sizes. The range includes DN15 (4 points), DN20 (6 points), DN25 (1 inch), DN32 (1.2 inch), DN40 (1.5 inch), DN50 (2 inch), DN65 (2.5 inch), DN80 (3 inch), and DN100 (4 inch). This progression covers most common requirements for residential, commercial, and light industrial piping. The distinction between 'points' (a historical sizing reference) and inch/metric DN sizes is clearly provided, allowing users to cross-reference their specific needs accurately. Selecting the correct size is the first critical step for a functional installation.

Uses and Placement

Check valves are fundamental components in systems where controlling flow direction is necessary to protect equipment or maintain process integrity. The choice between horizontal and vertical models adds a layer of application-specific optimisation.

Event or Professional Use

In professional plumbing, HVAC, and industrial settings, these valves can be installed on pump discharge lines to prevent backflow and water hammer, on boiler feed lines, or in process lines to maintain separation between different fluids. The horizontal check valve design is typically used in pipelines where the axis is horizontal, while the vertical check valve is intended for pipelines running vertically. This orientation specificity can affect the internal mechanism's response time and sealing effectiveness under gravity, making the correct choice important for system reliability.

Everyday Home Use

For domestic applications, such valves might be used in private water supply systems (e.g., after a pressure tank), in solar thermal circuits, or in garden irrigation systems to prevent draining and siphonage. The brass construction makes them suitable for potable water lines, provided local regulations permit its use. The threaded connections are familiar to most DIY enthusiasts and tradespeople, facilitating repairs or upgrades to existing pipework without requiring specialised welding or solvent-welding tools.

Benefits and Buying Value

The value of these check valves lies in their standardised design, material suitability, and the practical choice offered between two installation orientations.

Reuse and Low Maintenance

Brass valves are known for their longevity and typically require minimal maintenance beyond initial proper installation. The threaded design also allows for removal and potential reuse in another location if a system is modified, unlike permanently welded or glued fittings. As a mechanical device with no external power requirement, its operation is passive and reliable, contributing to long-term system uptime with little intervention.

Why Choose This Product

This product line stands out by offering both horizontal and vertical configurations within the same brass, threaded specification range. This removes the need to source from different suppliers for different layout needs. The comprehensive size run from small DN15 up to larger DN100 also means it can serve as a single-source solution for projects involving multiple pipe diameters. The clear specification of sizes in both DN and inch/point formats reduces the risk of ordering errors, making system planning and parts procurement more straightforward.
