LCR-TC1 Multi-function Transistor Tester with Full Colour Graphic Screen and Portable Size

This LCR-TC1 transistor tester brings a full colour graphic display to your electronics bench or field toolkit. Designed for identifying and testing a broad range of components, it eliminates the need for multiple separate testing devices. The compact 90 x 70 x 10mm format means you can slip it into a bag or pocket, ready for on-site diagnostics or quick bench checks. With a graphical interface that shows results clearly, you save time in interpreting readings. Whether you are repairing consumer electronics, testing parts before assembly, or learning component fundamentals, this tester delivers straightforward functionality in a slim, portable package.

Features and Construction

The LCR-TC1 model is purpose-built for multi-function component testing. Its practical design focuses on ease of use and portability, with all essential test functions integrated into a single unit.

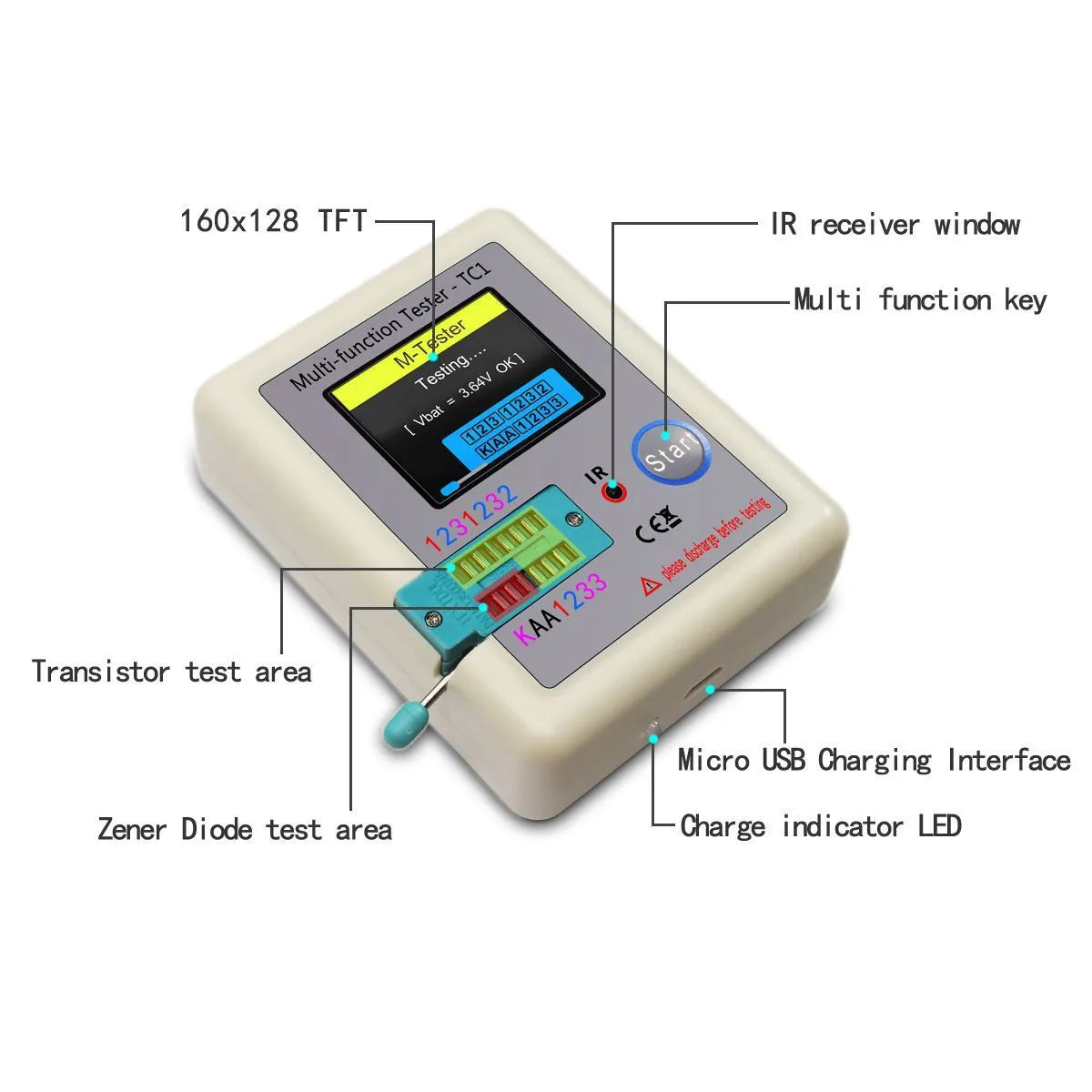

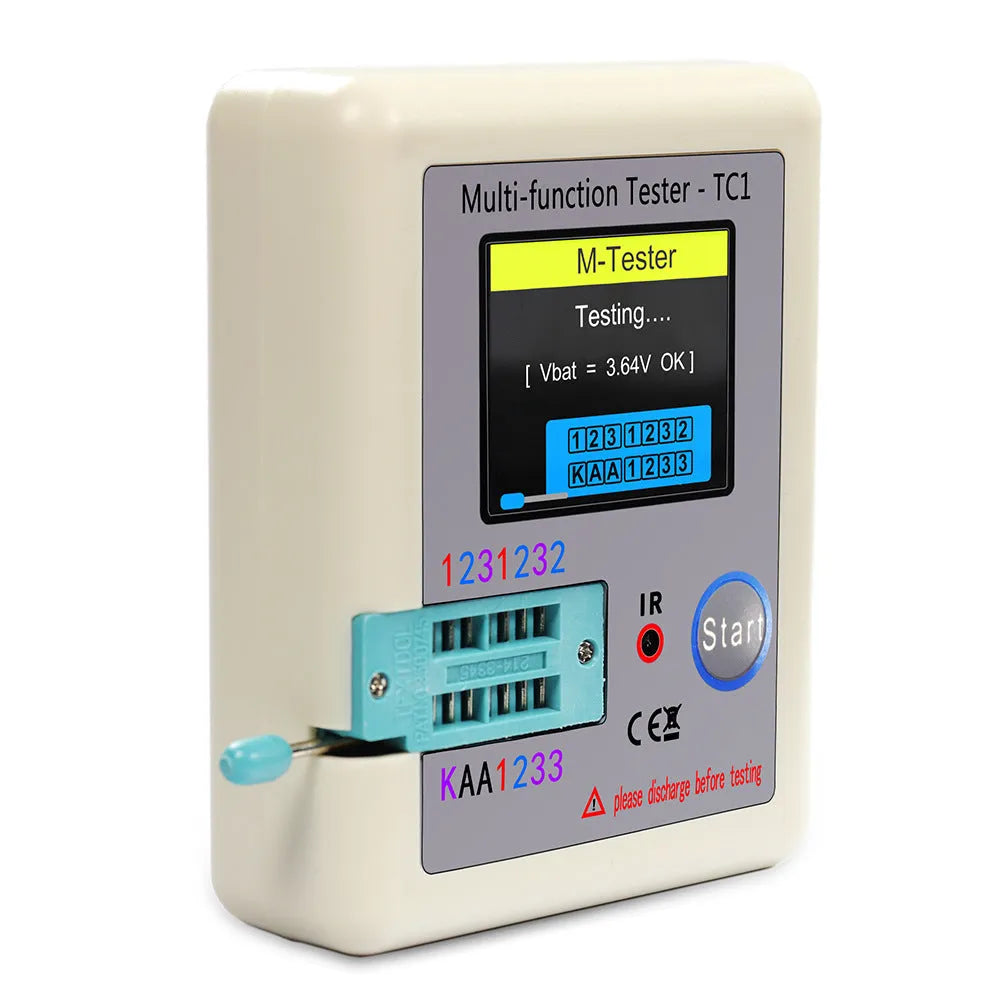

Full Colour Graphic Display

The colour screen presents test results in a graphical format, making it easier to understand component type, pin orientation, and basic parameters at a glance. This visual approach reduces the need to decode numbers or symbols, speeding up your workflow.

Compact and Portable Build

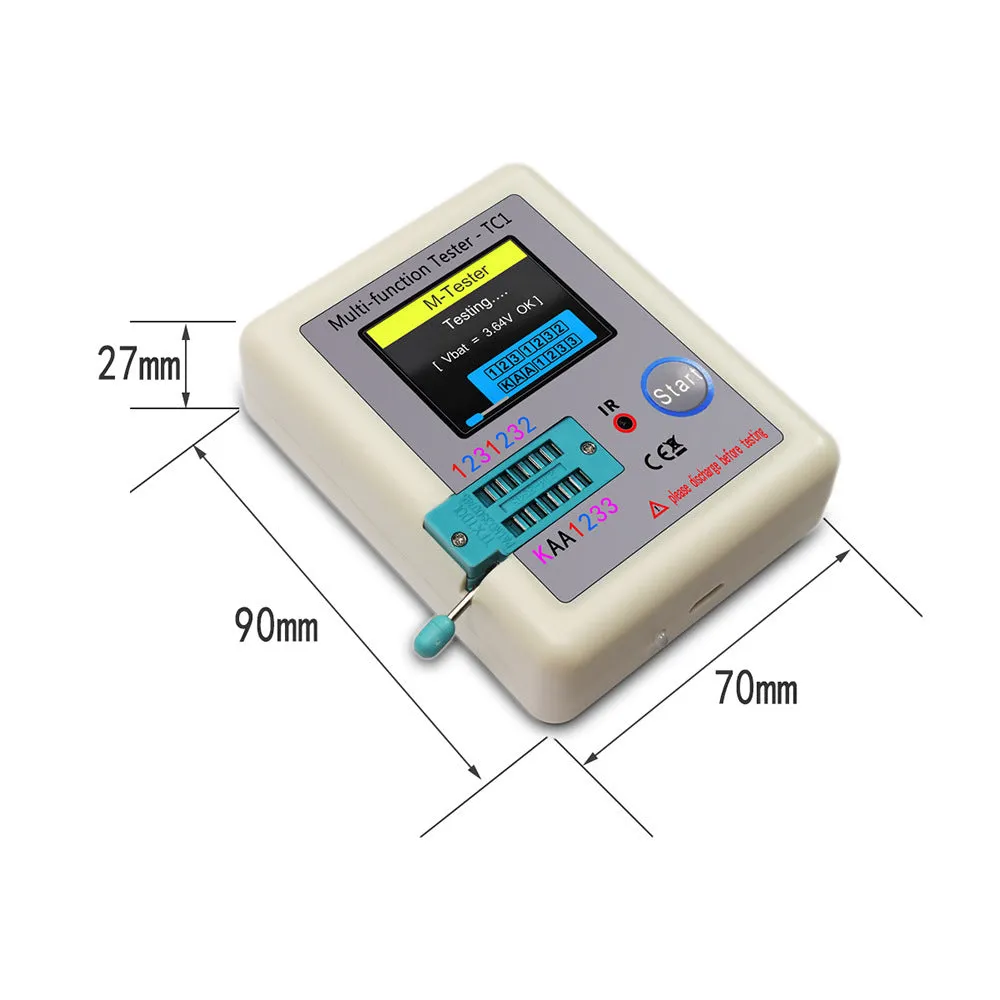

At just 90mm long, 70mm wide and 10mm thick, this device fits comfortably in your hand or a small tool pouch. Its slim profile means it can be stored alongside other handheld instruments without taking up much space.

Multi-function Component Testing

The tester handles a range of common electronic components, including transistors, diodes, resistors, capacitors, and more. This multi-function capability makes it a versatile addition to any electronics toolkit, reducing the need for separate dedicated testers.

Uses and Placement

This tester is suitable for both professional and hobbyist environments where quick component identification and verification is needed.

Electronics Repair and Troubleshooting

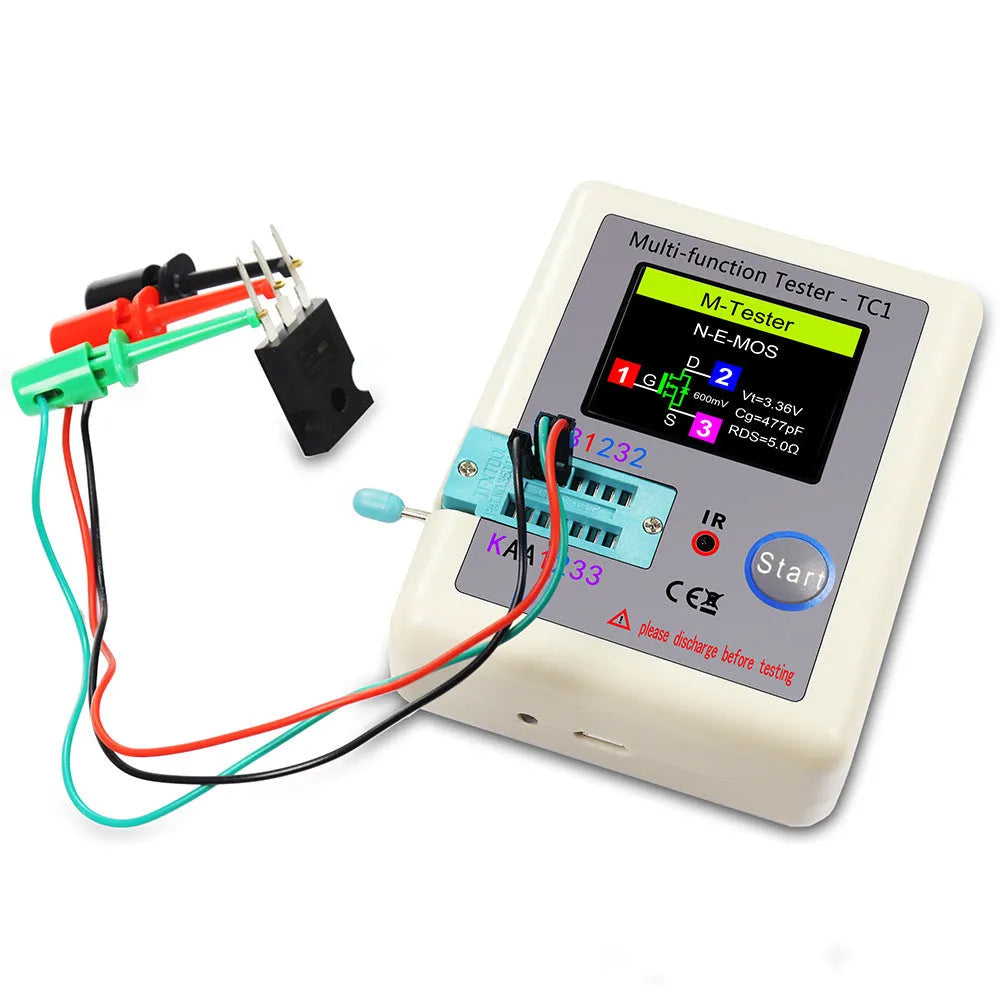

When a fault occurs on a circuit board, this tester helps you identify suspect components without desoldering them first. The graphic display shows whether a transistor or diode is functional, saving time during fault-finding.

Component Testing for Hobbyists

Whether you are building kits or prototyping circuits, you can verify each component before soldering it in place. The full colour readout gives immediate confidence in the part's condition and orientation.

Educational and Training Use

Instructors and students can use this tester to demonstrate how to measure basic component characteristics. The visual display makes it easier to explain concepts like transistor pinout or capacitor health in a classroom or workshop setting.

Benefits and Buying Value

The LCR-TC1 tester offers practical value by combining multiple test functions in one slim device, reducing the cost and clutter of owning several instruments.

All-in-One Diagnostic Tool

Instead of buying separate testers for transistors, capacitors, and diodes, this one unit covers them all. That saves both money and workspace, ideal for mobile technicians and compact workbenches.

Portable and Easy to Store

Because it is only 10mm thick, you can keep it in a drawer or carry it in a small case without hassle. Its lightweight design encourages you to take it wherever you need to test components.

Straightforward Operation

Simply connect the component terminals, press test, and read the graphic display. No complex menu navigation or calibration steps are required, allowing you to focus on the repair or build at hand.
