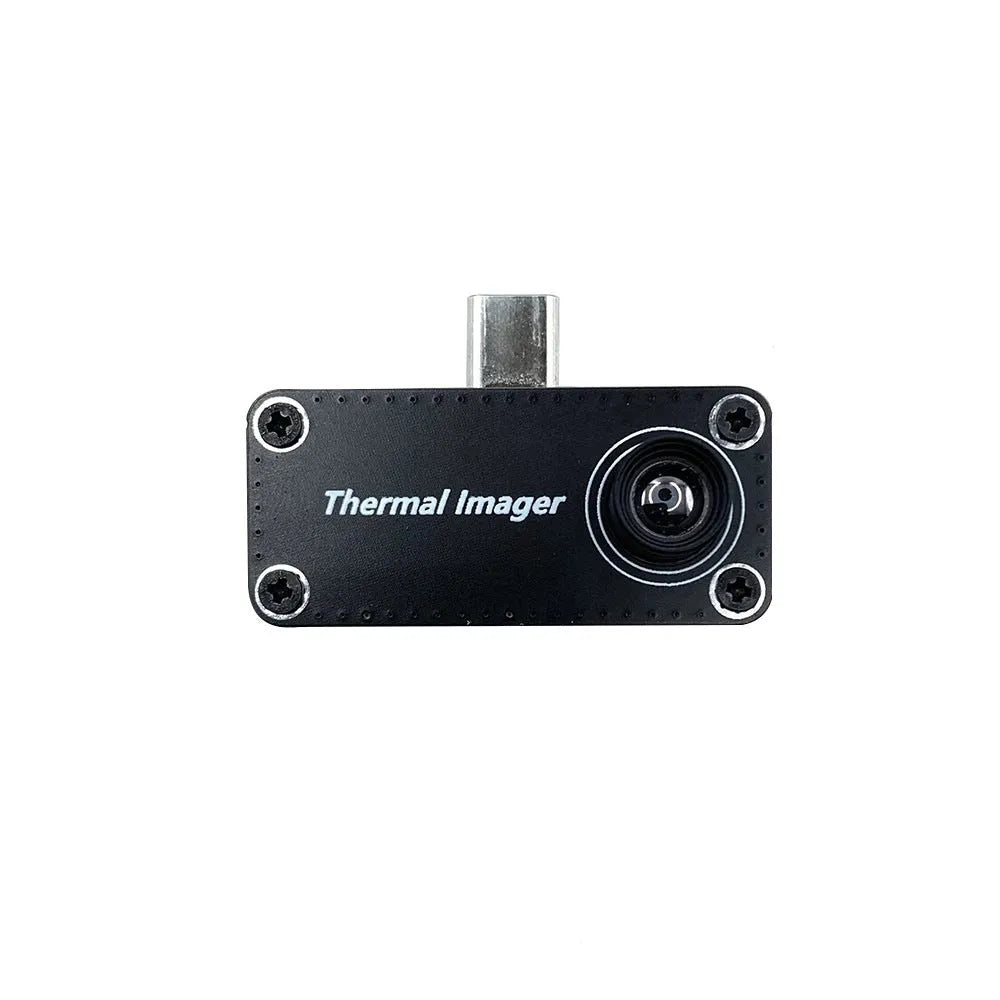

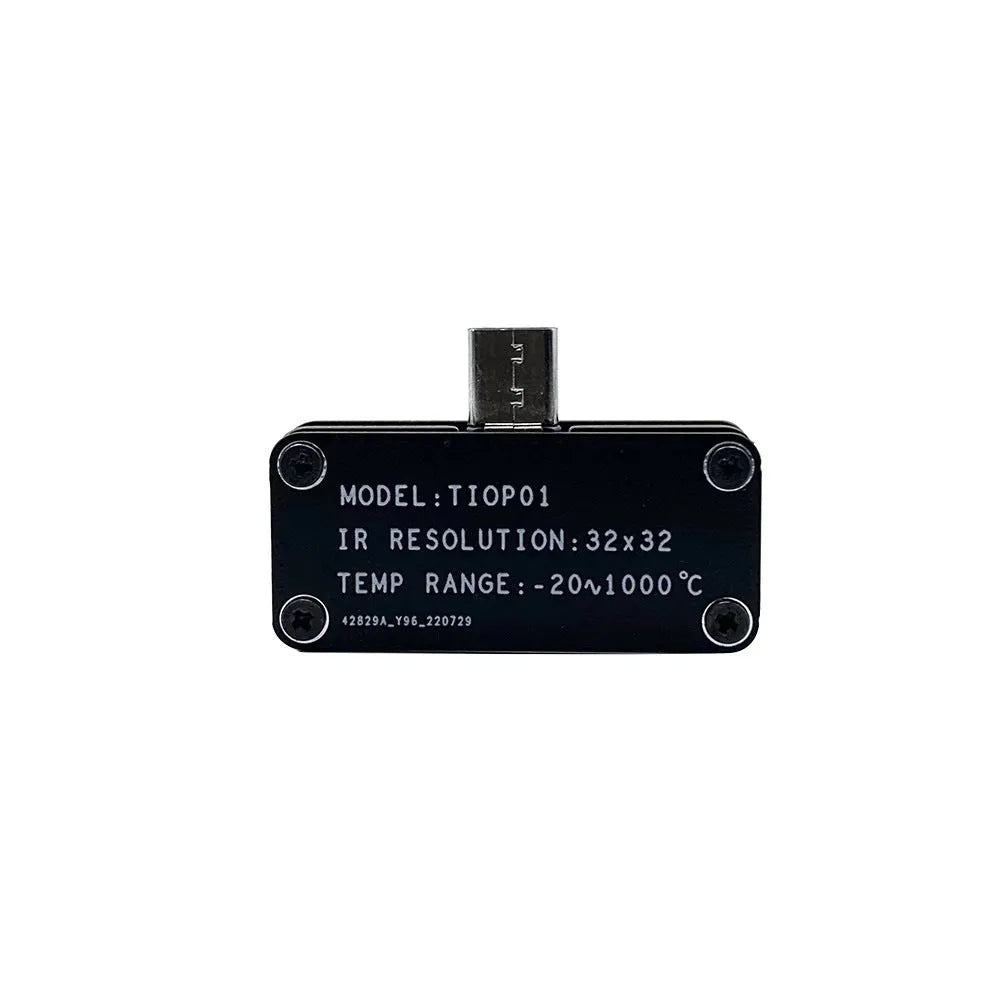

Mobile Phone Hot Imaging Instrument with 32x32 Resolution and Type-C Interface for Android Devices

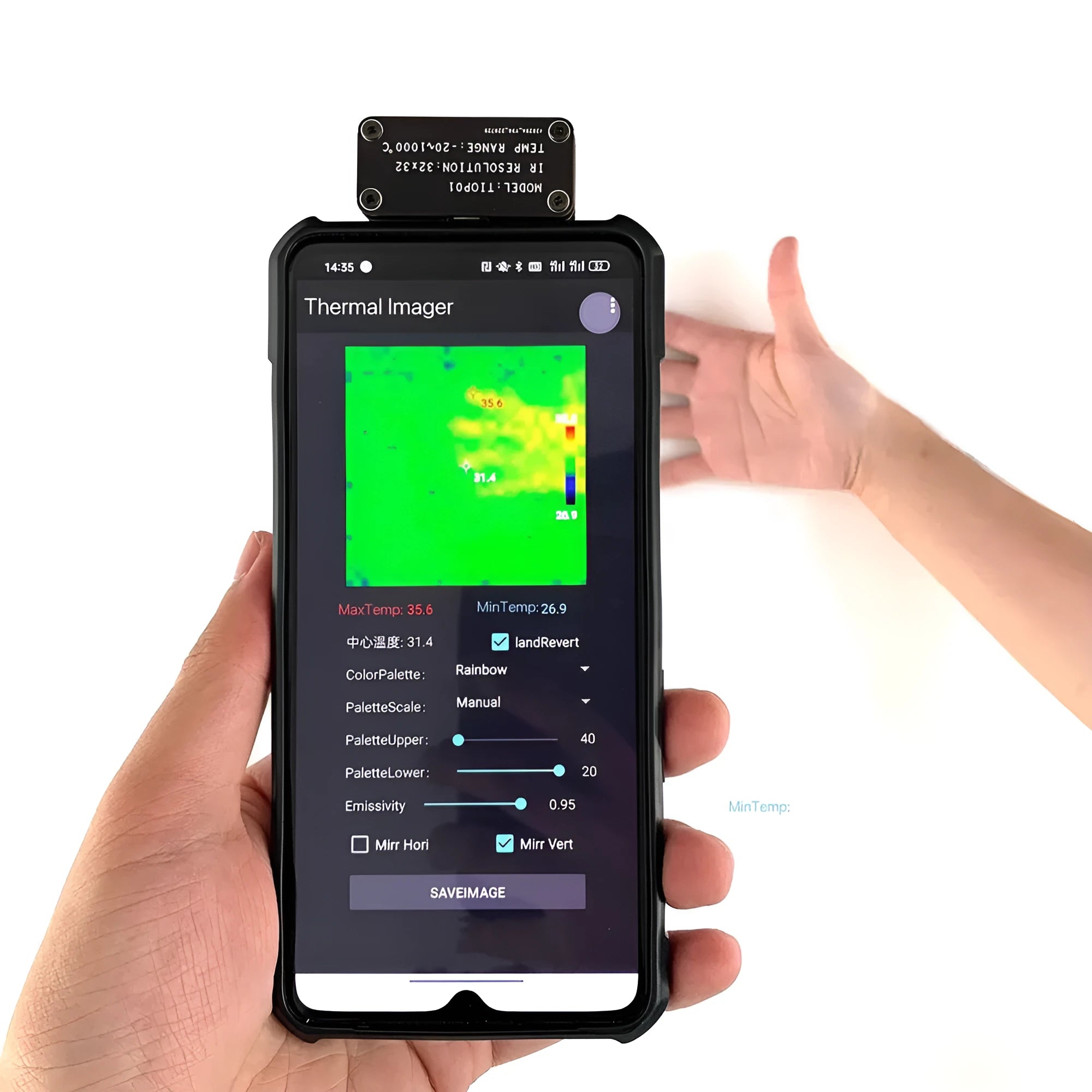

This thermal imaging instrument connects directly to your Android smartphone via a Type-C interface, transforming your phone into a portable temperature measurement tool. With a 32 by 32 pixel resolution and a 33-degree field of view, it captures heat patterns for quick diagnostics in electrical, mechanical, and building inspection tasks. The device weighs only 10g and measures 44 by 29.2 by 19mm, so it fits easily in a pocket or toolkit. It works with Android 8 to 12 and saves thermal images locally on your device for later review.

Features and Construction

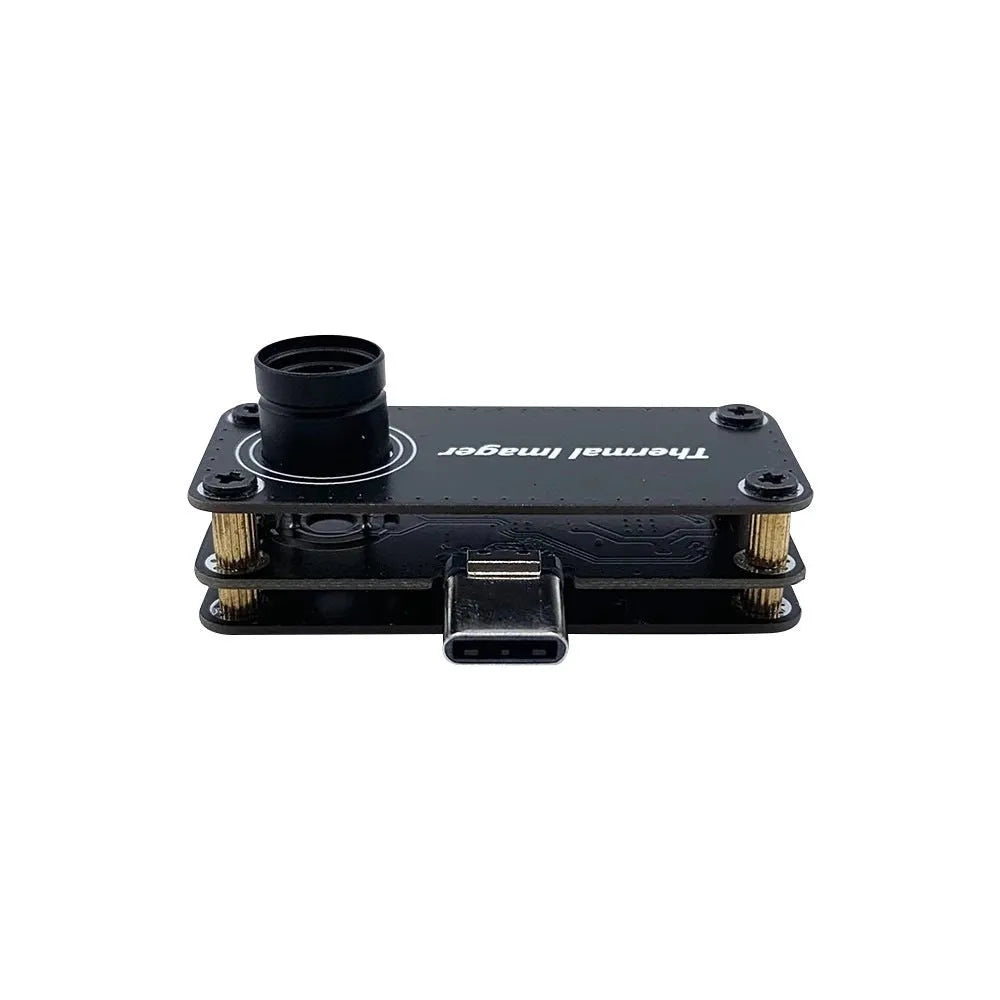

The thermal imager combines a compact sensor module with practical temperature measurement capabilities. Its Type-C connection ensures a straightforward plug-and-play setup with compatible Android phones.

Sensor and Resolution

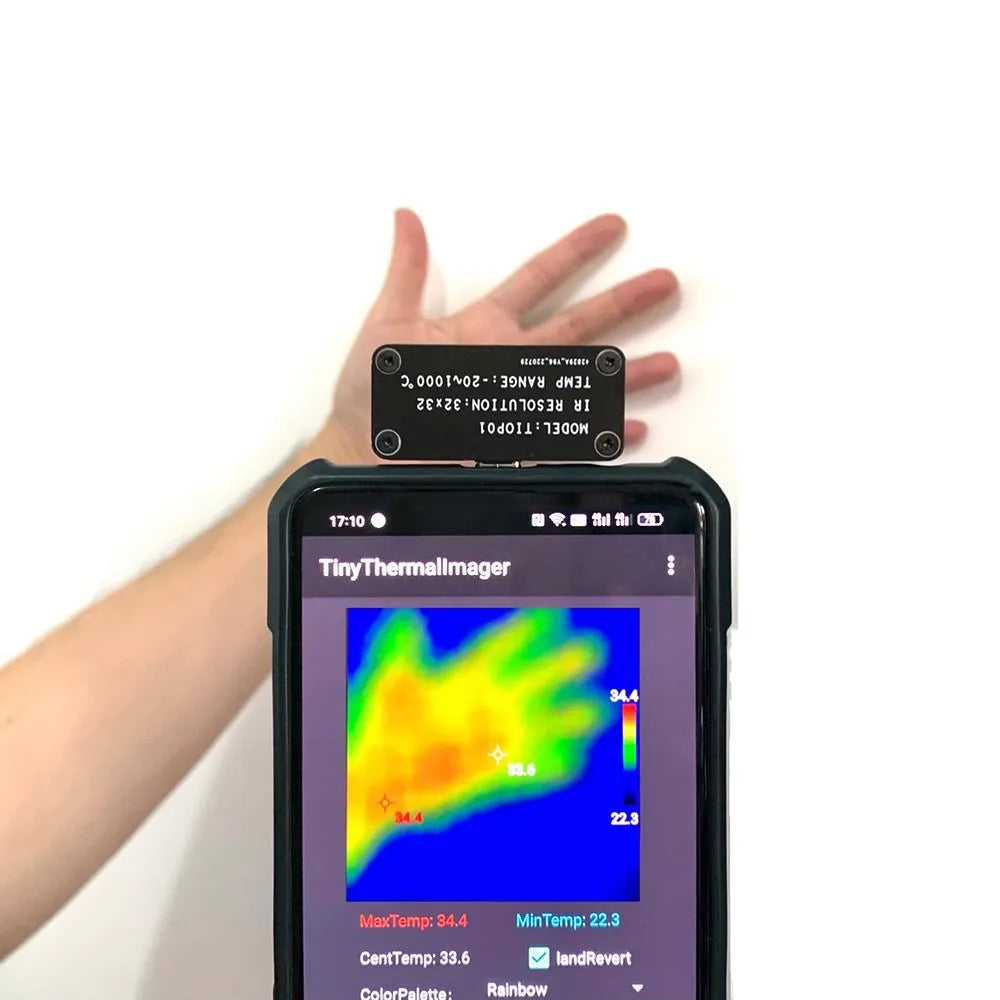

The 32 x 32 pixel thermal sensor provides a grid of temperature readings that your phone displays as a heat map. The 33-degree field of view covers a useful area for inspecting panels, pipes, or small rooms without needing to move the device repeatedly.

Temperature Measurement Range

This instrument measures temperatures from -20°C up to 1000°C, which covers typical electrical, HVAC, and industrial applications. The accuracy of ±3°C is consistent for most non-invasive surface temperature checks you might perform on site.

Palette and Imaging Options

Five colour palettes are built in, letting you switch between visual styles that make hot spots or cold areas easier to identify on screen. The maximum frame rate of 5 frames per second keeps the image reasonably smooth for static or slow-moving targets.

Uses and Placement

This mobile phone thermal imager is suited to both professional tradespeople and DIY users who need a quick temperature overview without carrying a full-sized thermal camera.

Electrical and Mechanical Inspection

Check fuse boxes, circuit breakers, motors, and bearings for abnormal heat signatures. The compact size lets you reach tight spaces inside panels where larger cameras might not fit.

Building and Home Diagnostics

Scan walls for missing insulation, locate drafts around windows and doors, or identify overheating in appliances. The ability to save images on your phone makes it easy to document findings for reports or future reference.

Benefits and Buying Value

This thermal imager turns your existing Android phone into a functional temperature measurement tool without requiring a separate display unit.

Portability and Convenience

Because the device uses your phone's screen and processing power, you avoid carrying an extra display. The 10g weight and small size mean you can keep it in a work vest pocket or small tool bag ready for use.

Compatibility and Data Saving

The Type-C interface works with Android devices running version 8 to 12, and images can be saved locally for later analysis or sharing. This reduces the need for additional software or cloud accounts during field work.
