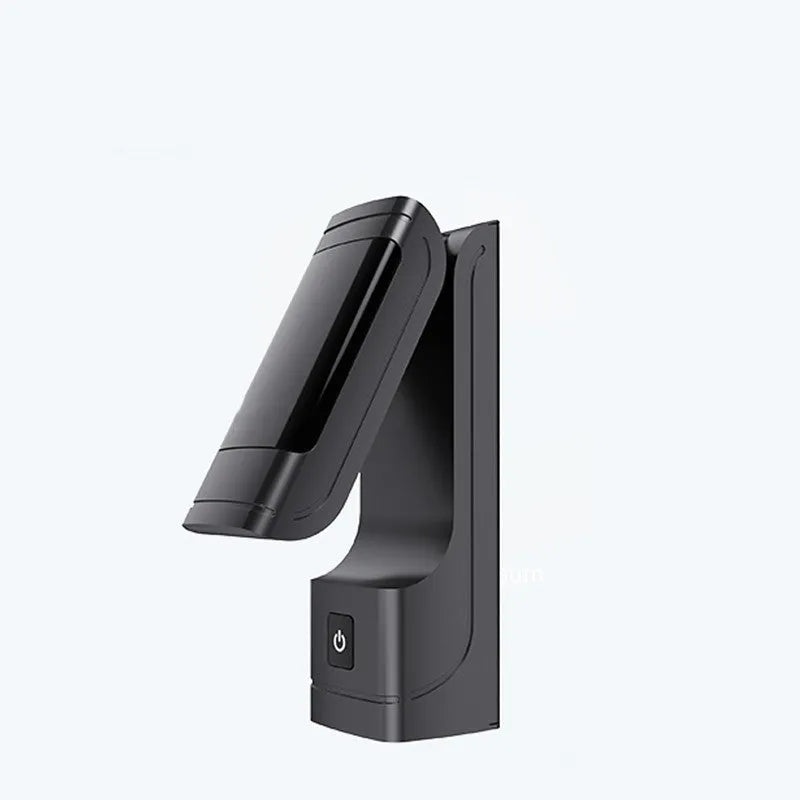

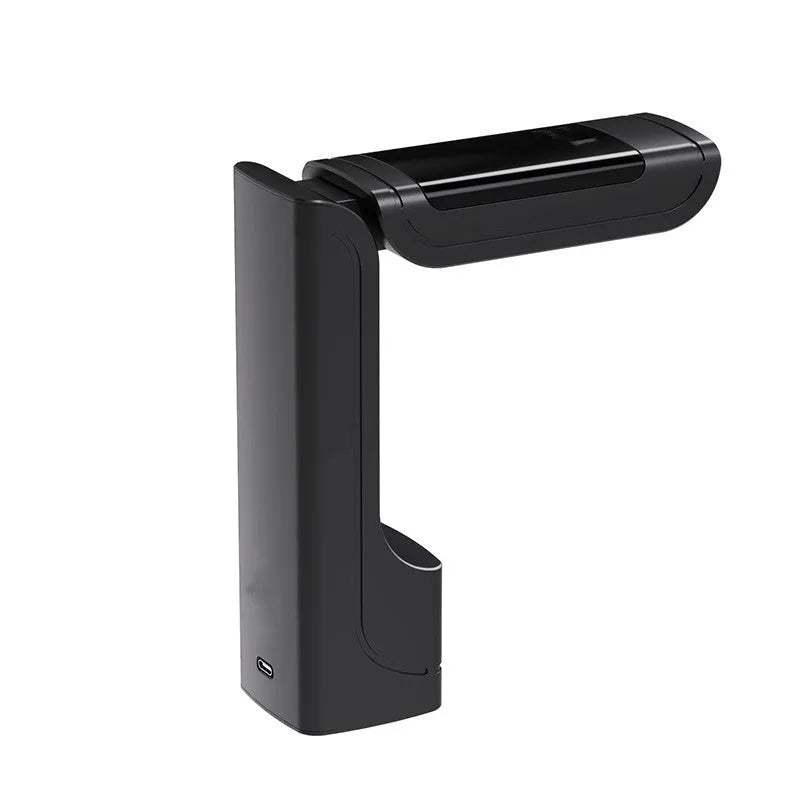

Third Generation USB Mobile Phone Diagnostic Instrument for Telecommunication Maintenance

This handheld diagnostic apparatus represents the third generation of rapid testing tools designed specifically for telecommunication maintenance professionals. Its primary function is to assist in the identification and analysis of faults within mobile phone mainboards, providing a targeted solution for repair scenarios. The compact, portable design allows technicians to perform essential diagnostics on-site, streamlining the workflow from initial fault finding to potential resolution. With clear specifications for its operating environment and power needs, this tool is built for practical, repeated use in a workshop or field setting.

Features and Construction

The instrument's build is defined by its measurable specifications and intended application scope. Every aspect of its design, from its physical size to its electrical requirements, is geared towards fulfilling a specific role in telecommunication equipment repair.

Material and Build

The product's construction is inferred from its function as an electronic diagnostic tool with a USB connection. It is housed in a casing suitable for handheld use, with internal components engineered for the rapid diagnostic processes indicated by its 'Generation 3' designation. The design prioritises functionality for its stated scope of telecommunication maintenance over aesthetic flourishes.

Size and Practical Fit

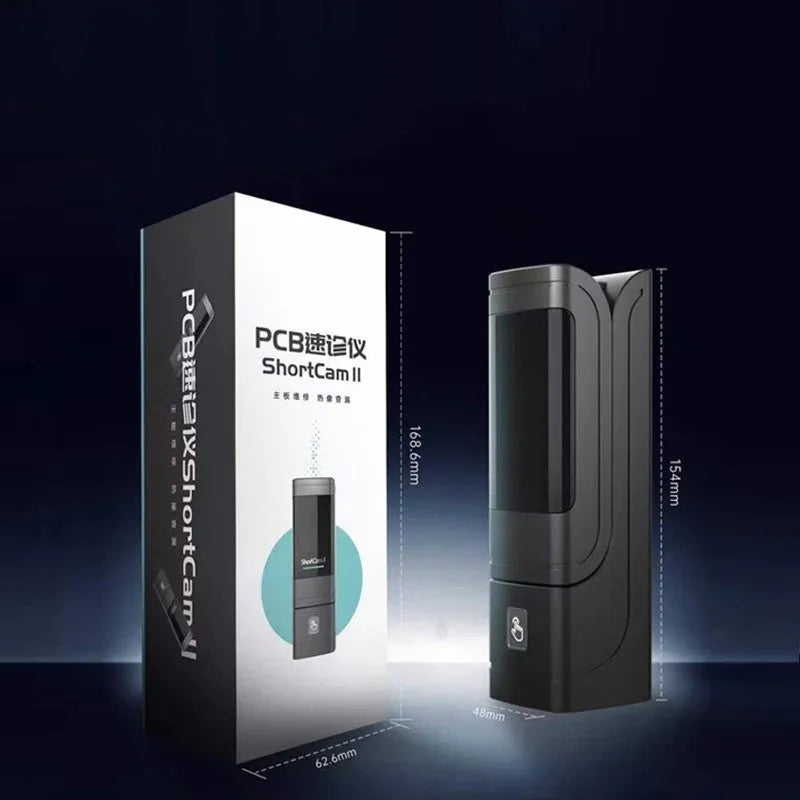

The instrument's dimensions are precisely 48mm in width, 48mm in depth, and 154mm in length. This compact form factor makes it a truly portable device that can be easily transported in a toolkit or held comfortably during extended use. The square profile and manageable length contribute to its ergonomics as a dedicated handheld repair tool for technicians.

Uses and Placement

This diagnostic instrument has a clearly defined purpose within the telecommunication sector. Its value is realised in specific professional contexts where speed, portability, and accuracy in fault detection are paramount.

Event or Professional Use

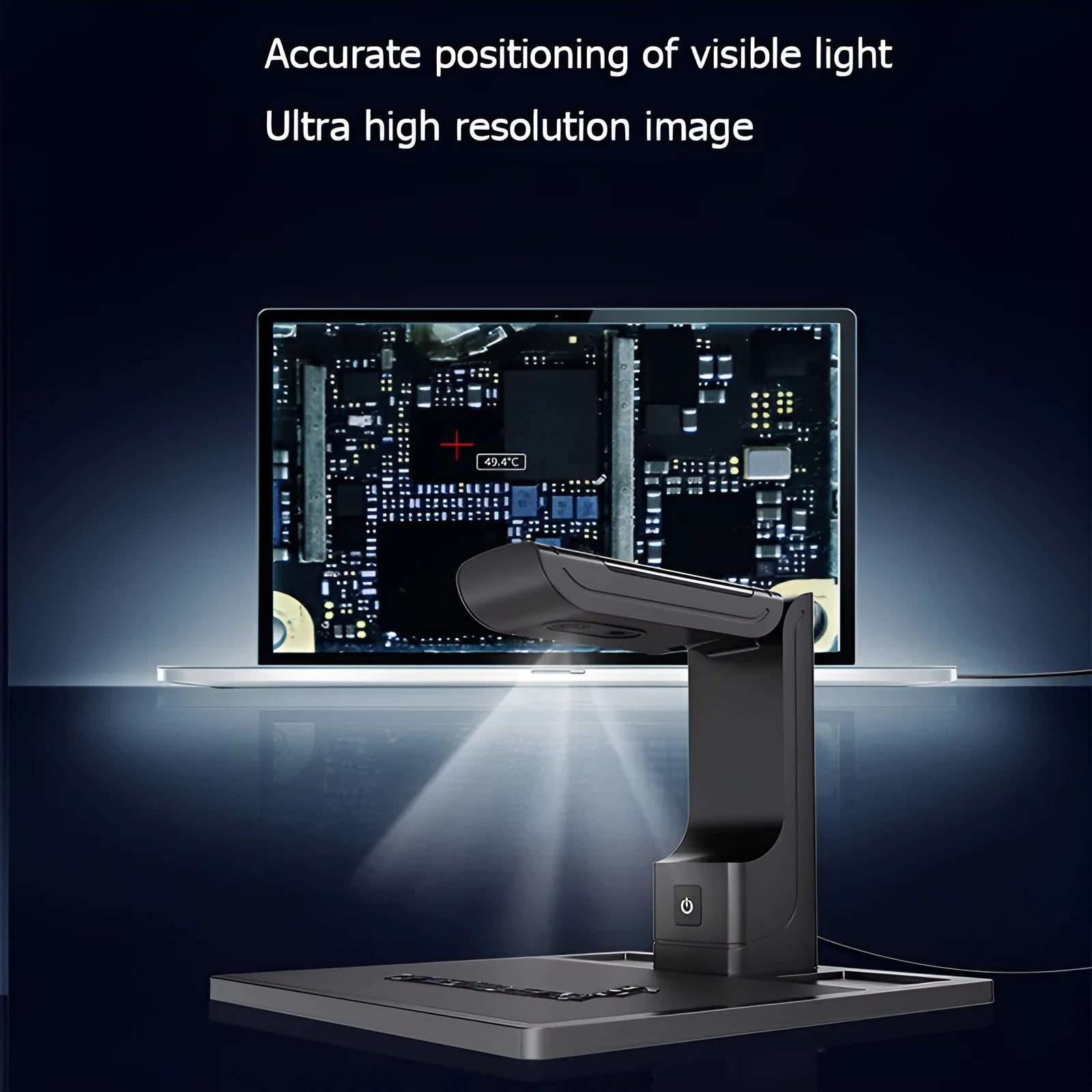

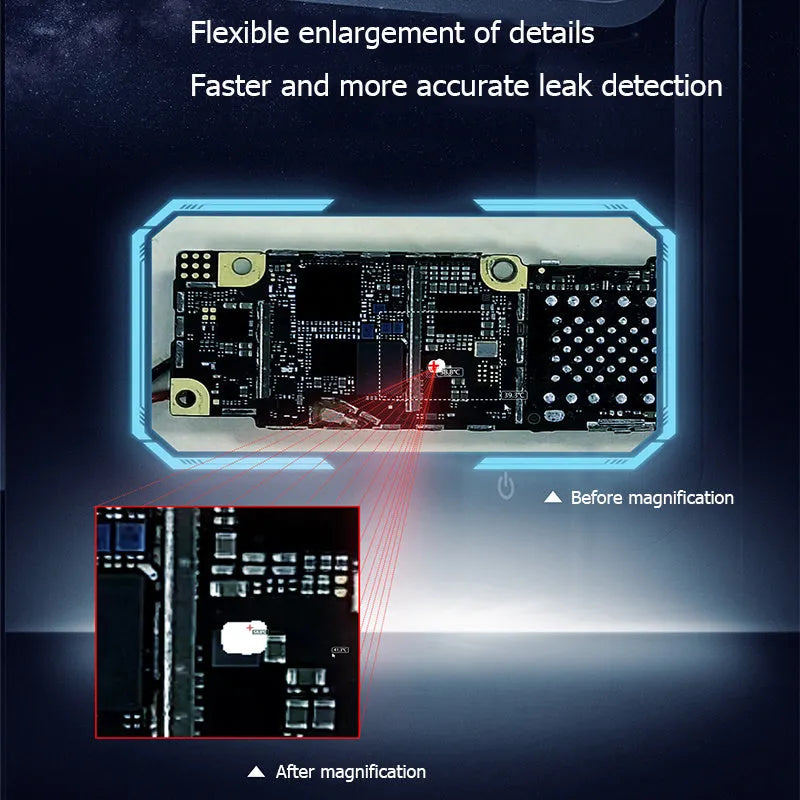

The tool is explicitly designed for telecommunication maintenance, indicating its primary users are repair technicians, network engineers, and service centre staff. Its application scenario is professional repair work, where it serves as a dedicated instrument for diagnosing issues with mobile phone mainboards. The 'rapid diagnostic' capability suggests it is intended to reduce troubleshooting time in busy repair environments.

Everyday Home Use

While engineered for professional maintenance, the tool's simplicity—powered via a standard USB connection—means it could theoretically be used by advanced hobbyists or in small-scale repair setups. However, its utility is inherently tied to having the technical knowledge to interpret diagnostic data for mobile phone mainboards, confining its practical everyday use to individuals with relevant repair skills.

Benefits and Buying Value

The value of this diagnostic instrument lies in its specialised function, defined specifications, and practical design. It offers a focused solution that avoids unnecessary complexity for its intended task.

Reuse and Low Maintenance

The device is built for repeated professional use, as evidenced by its defined storage temperature range of -20°C to 60°C, which protects the electronics during transport or in non-climate-controlled environments. Its low power consumption of 2.5W at 5V DC suggests minimal electrical strain and heat generation, contributing to its potential longevity during active diagnostic sessions.

Why Choose This Product

This instrument is chosen for its specific combination of a third-generation diagnostic platform, a compact and portable physical form, and clear operational parameters. It provides a known quantity: a tool of a defined size and power requirement that performs a specific telecommunication maintenance task. For a technician needing a dedicated mainboard diagnostic device, it offers a straightforward, single-purpose tool without extraneous features.
