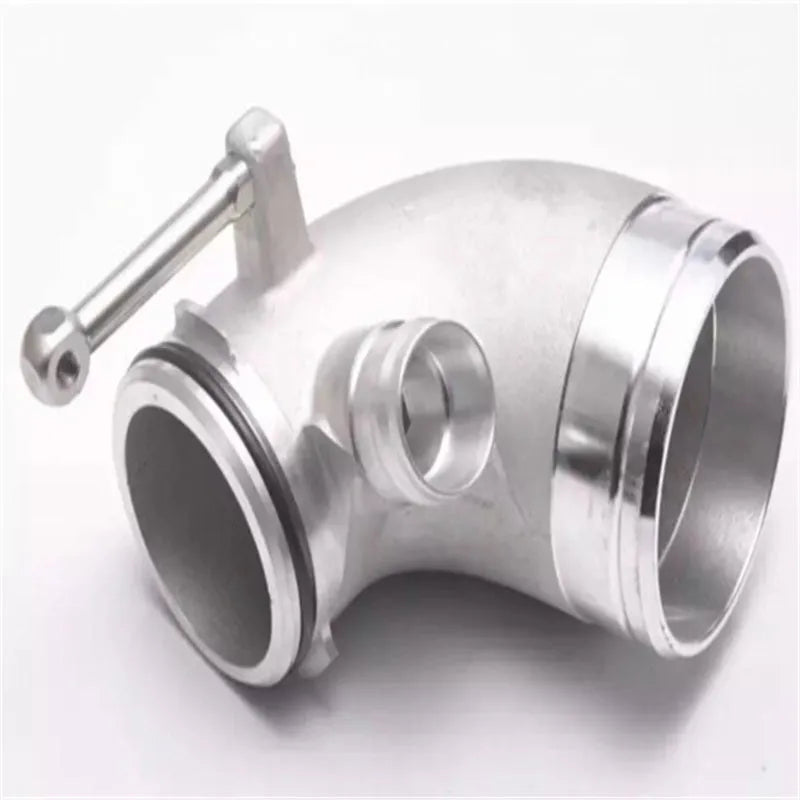

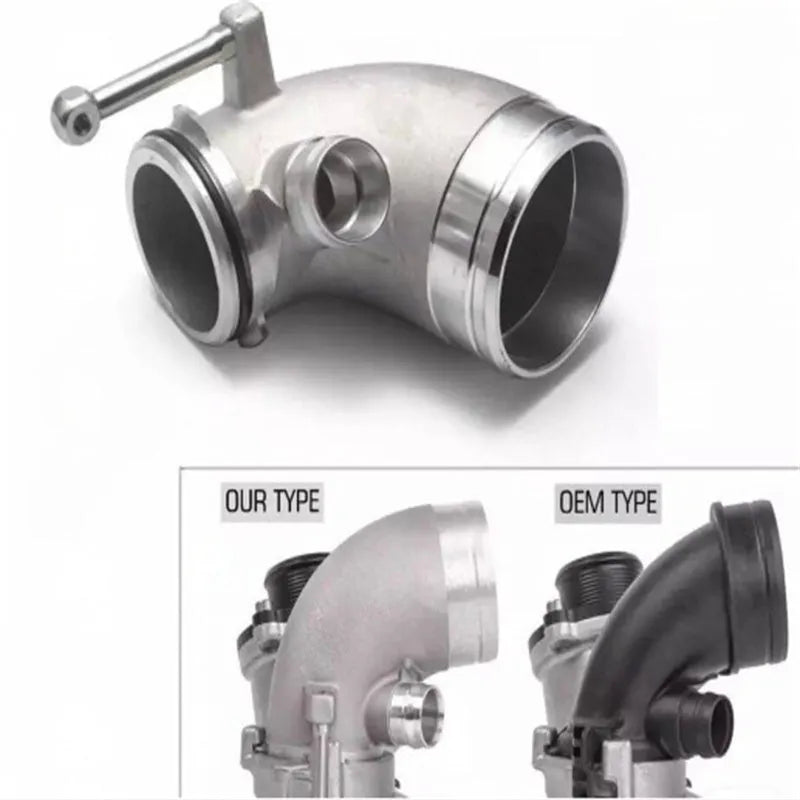

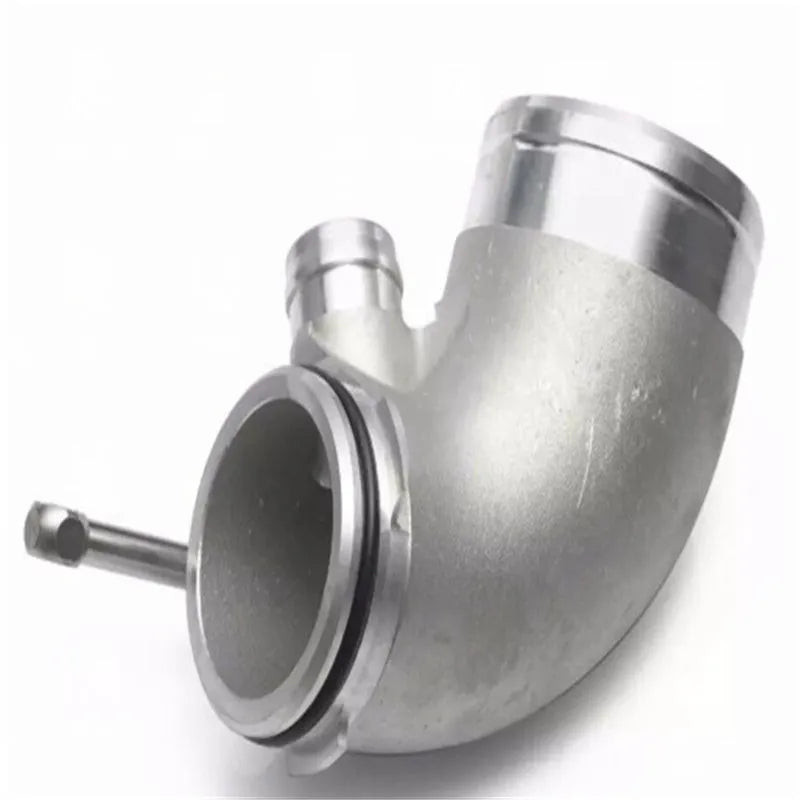

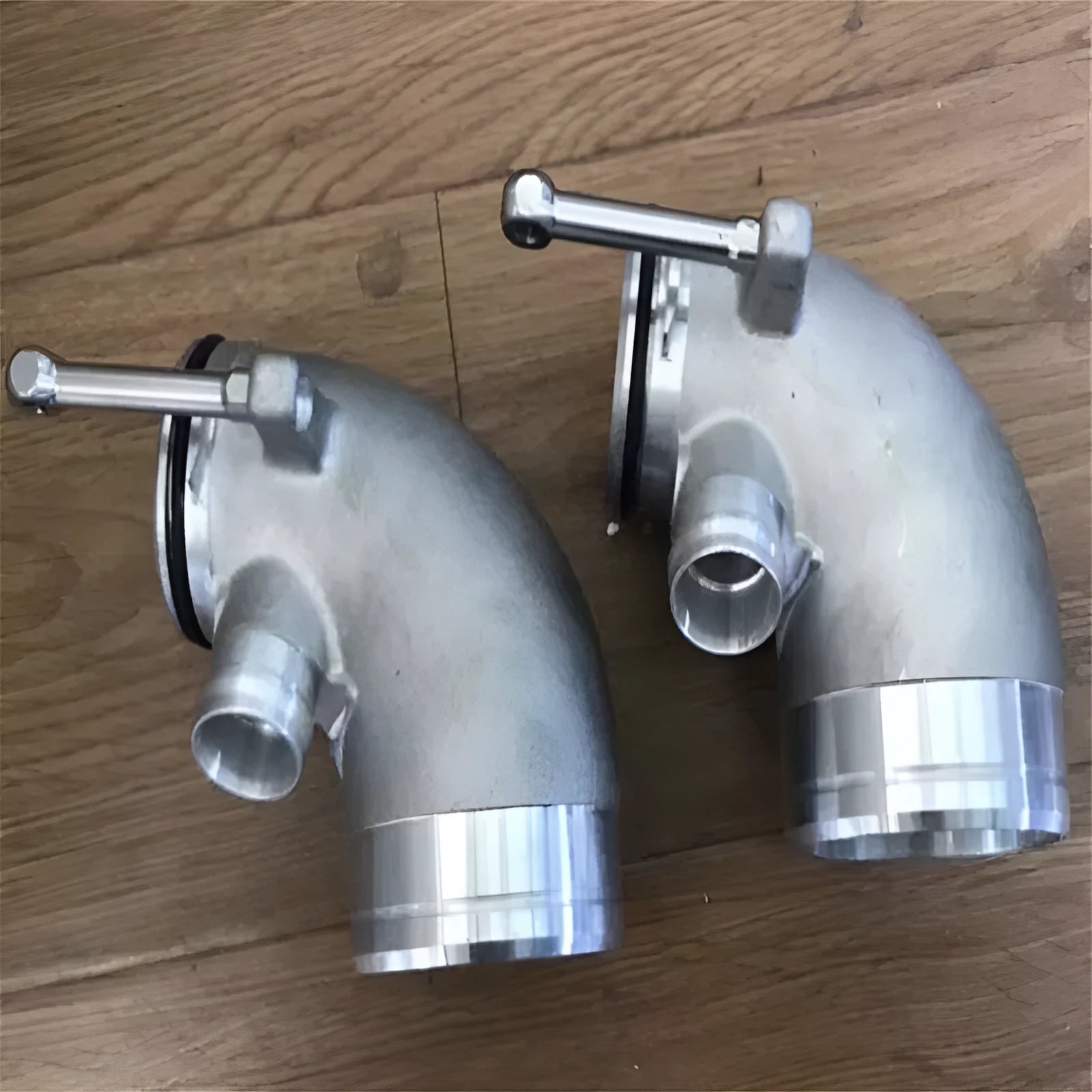

90 Degree Aluminium Turbine Tube Elbow for Lateral Engine Turbo Installations

This modified automotive turbine tube provides a specialised 90 degree aluminium alloy elbow designed specifically for turbo system installations where lateral engine positioning creates space constraints. When straight pipework cannot route effectively around other engine bay components, this precisely angled connector offers a practical solution for compressed air flow between turbocharger and intercooler systems. The integrated moulding manufacturing process creates a seamless bend without welded joints, reducing potential failure points while maintaining consistent internal diameter throughout the directional change. This single-piece construction from automotive-grade aluminium alloy combines lightweight properties with sufficient structural integrity for pressure applications.

Features and Construction

The turbine tube elbow employs specific design and manufacturing approaches that address common turbo installation challenges in modern engine bays.

Material and Build

Manufactured entirely from aluminium alloy using an integrated moulding process, this tube creates a continuous 90 degree bend without welded seams. The aluminium alloy composition provides a practical balance between weight reduction and structural capability for automotive pressure applications. This manufacturing method eliminates potential weak points at welded joints that could fail under repeated thermal cycling and vibration in engine environments. The seamless construction maintains consistent wall thickness throughout the bend, supporting smooth airflow transition.

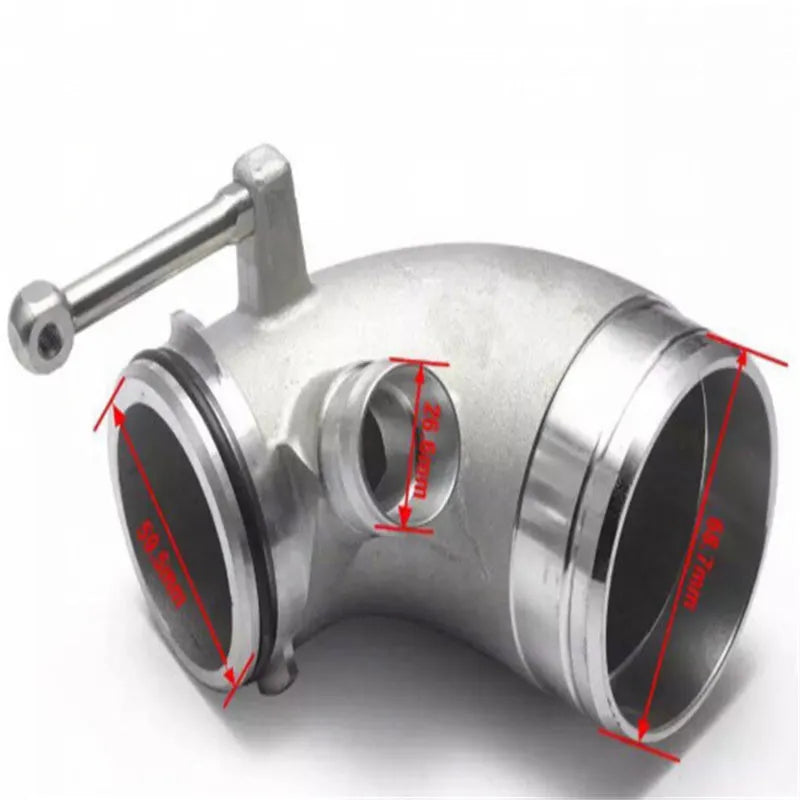

Size and Practical Fit

With its precisely formed 90 degree angle, this tube addresses clearance issues in lateral engine configurations where straight pipework cannot route effectively. The universal design accommodates various turbo system installations requiring directional air routing around obstacles. This component helps avoid interference with other engine bay components like suspension struts, brake master cylinders, or chassis members in tight spaces. The elbow provides a secure connection path for compressed air between turbocharger and intercooler components without abrupt restrictions.

Uses and Placement

This specialised automotive component serves specific installation scenarios where conventional pipework cannot achieve necessary routing angles.

Event or Professional Use

In performance automotive applications, whether track-focused modifications or professional racing builds, lateral engine positioning often requires creative routing solutions for turbo plumbing. This 90 degree elbow provides a ready-made component that simplifies complex installation processes where custom fabrication might otherwise be necessary. The welding-free construction reduces assembly time while providing reliable performance under demanding conditions. Professional installers can incorporate this component into various turbo system configurations with confidence in its construction quality.

Everyday Home Use

For automotive enthusiasts undertaking modifications in home workshops, this turbine tube offers a practical solution to common turbo installation challenges. Its universal design means it can adapt to various vehicle makes and models with lateral engine placements. The ready-to-install nature eliminates the need for specialised bending equipment or welding expertise that many home mechanics may not possess. This component simplifies what could otherwise be a complex fabrication process, making turbo system modifications more accessible.

Benefits and Buying Value

This automotive component provides specific advantages through its design approach and manufacturing methodology.

Reuse and Low Maintenance

The aluminium alloy construction offers corrosion resistance properties that help maintain appearance and function over time in engine bay environments. Without welded seams that could develop fatigue cracks, the integrated moulding approach supports longer service life with minimal maintenance requirements. The material's inherent properties help resist degradation from heat cycling and exposure to automotive fluids. This durability supports potential reuse in multiple projects or vehicle changes.

Why Choose This Product

This turbine tube elbow addresses a specific installation challenge with a purpose-designed solution rather than requiring adaptation of generic components. The welding-free construction eliminates a common failure point in custom fabricated pipework while maintaining consistent internal dimensions for airflow. The aluminium alloy provides weight advantages over steel alternatives without sacrificing necessary strength for turbo system pressures. For lateral engine turbo installations requiring 90 degree directional changes, this component offers a ready solution that simplifies the modification process.
