220V Direct-Power Music Tesla Coil Driver Board for 20-Metre Synchronised Arc Displays

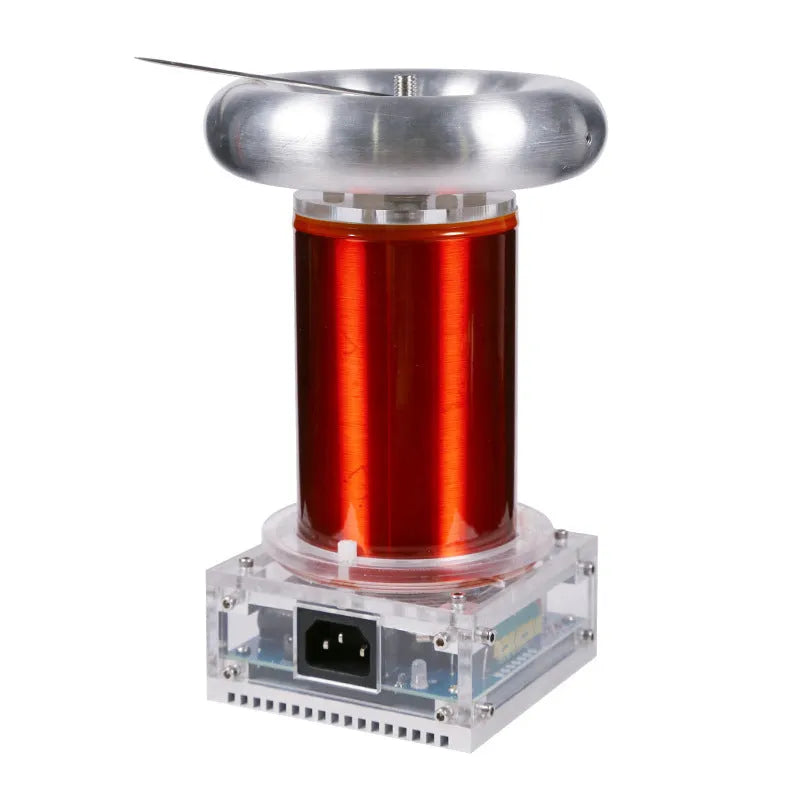

This specialised Tesla coil driver board is engineered to simplify the creation of large-scale, audio-responsive high-voltage arc displays. Unlike many systems requiring complex grounding or multiple power units, this model connects directly to a standard 220V AC mains socket, eliminating the need for an installed earth cable. It is designed as a complete driver unit for an SSTC (Solid State Tesla Coil), generating impressive electrical arcs that can be modulated in time with music from any source with a 3.5mm output. The integrated controller allows for precise adjustment of arc length and visual intensity, making it suitable for educational demonstrations, artistic installations, or striking visual centrepieces at events where safety and straightforward setup are priorities.

Features and Construction

The driver board consolidates power conversion, signal processing, and safety controls into a single, compact unit. Its construction prioritises a robust and portable form factor, housing the necessary electronics for generating high-frequency, high-voltage output to drive a connected Tesla coil primary.

Material and Build

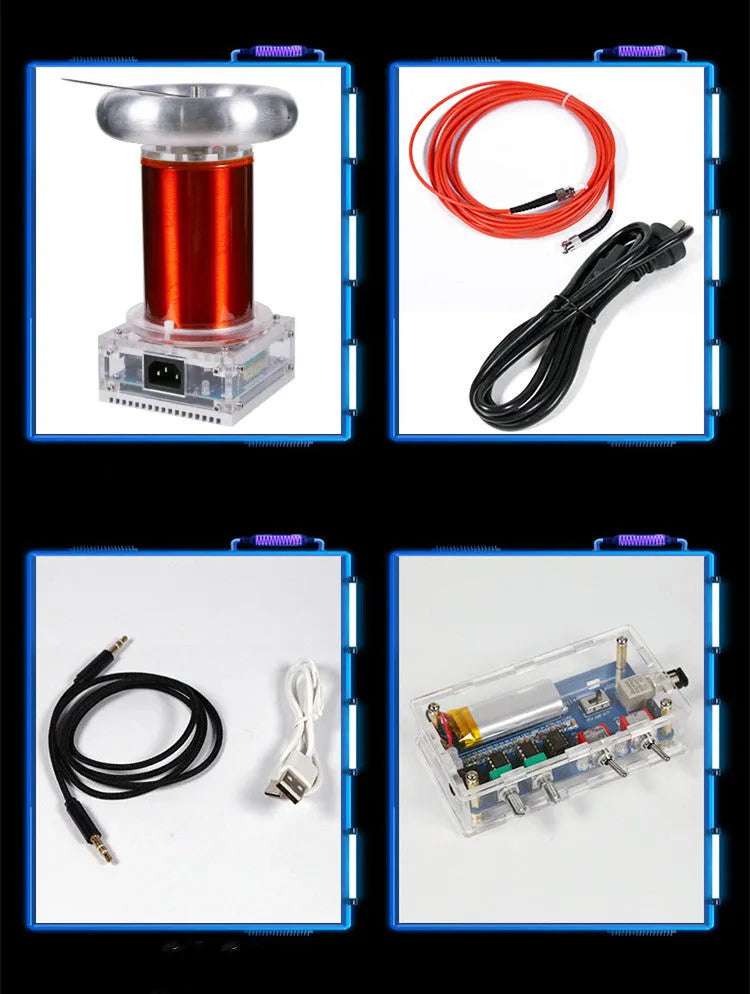

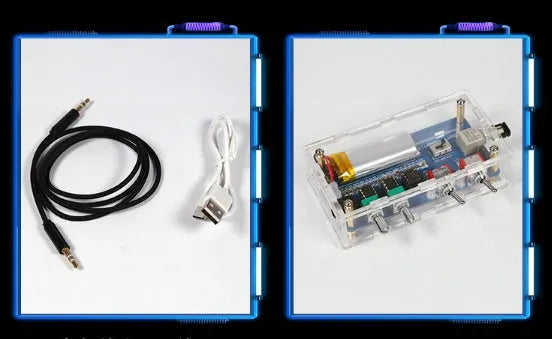

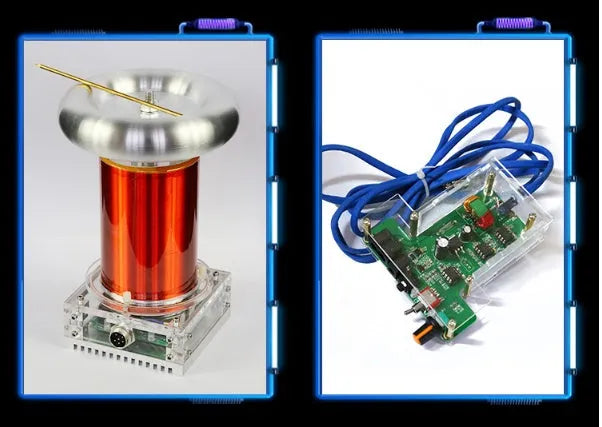

The unit is built with a combination of electronic components on a printed circuit board, housed within a casing designed for durability and heat dissipation. The inclusion of an arc extinguishing isolation device is a key safety feature, providing a controlled method to halt the discharge. The accompanying controller features a potentiometer for fine adjustment and a sturdy connection for the optical fibre link that carries control signals, ensuring reliable operation away from the high-voltage field.

Size and Practical Fit

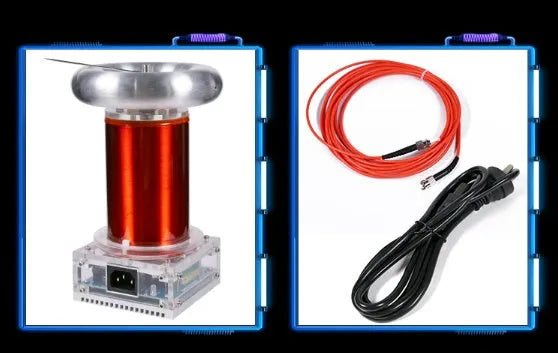

With dimensions of 100 mm in width, 115 mm in depth, and 205 mm in height, the driver board presents a relatively compact footprint for its capability. Its total weight of 1 kilogram contributes to its portability, allowing it to be positioned conveniently near a power source while the main coil and display are set up at a safe distance. This physical separation, facilitated by the supplied cables, is integral to maintaining the recommended safety perimeter during operation.

Uses and Placement

This product is designed for applications where visual impact and audio synchronisation are key. Its primary function is to power a Tesla coil to produce dynamic, lightning-like arcs that dance in response to music, creating a captivating spectacle.

Event or Professional Use

For stage shows, science museums, or special events, this driver board enables the creation of a safe, controllable high-voltage display. The ability to produce arcs up to 20 metres long allows for large-scale visibility. Technicians can use the controller to modulate the display's intensity in real-time or set it to respond automatically to an audio feed, providing a hands-free visual effect that aligns with soundtracks or musical performances, all while operating from a standard venue power outlet.

Everyday Home Use

While not an everyday appliance, it serves advanced hobbyists, educators, or technology enthusiasts for home demonstrations and projects. The straightforward 220V plug-and-play setup removes significant technical barriers to operating a Tesla coil. It allows users to experiment with high-voltage physics, create artistic light-and-sound installations in a dedicated workspace, or simply enjoy the mesmerising display of electrical plasma arcing to their favourite music, provided all safety protocols regarding distance and operational duration are strictly followed.

Benefits and Buying Value

The value of this driver board lies in its integrated design and operational simplification, which reduces the complexity typically associated with high-voltage experimentation.

Reuse and Low Maintenance

The unit is built for repeated use across multiple sessions or events. Adherence to the recommended usage guidelines—such as limiting music playback to 2-3 minutes and overall operation to 3-5 minutes per session—helps maintain component longevity. The system requires minimal maintenance beyond ensuring connections are secure and the unit is kept in a dry, stable environment. Its all-in-one design means there are no complex external assemblies to configure for each use.

Why Choose This Product

This driver board is a practical choice for anyone needing a reliable power and control source for a music-synchronised Tesla coil display. Its key advantage is the elimination of the ground wire requirement and its direct 220V operation, which broadens its usable locations. The specified 20-metre arc potential, combined with the safety features like the isolation device and the provided controller for precise adjustment, offers a balance of impressive performance and managed risk that is clearly defined by its technical specifications.
